| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | A.N.G |
| Certification: | CE,ISO,ROHS |
| Model Number: | AR-CI360T |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Depends on quantities |
| Packaging Details: | 1pcs/box,100pcs/carton,100pcs 4KG |
| Delivery Time: | 2-15 Days |
| Payment Terms: | T/T,Paypal,Western Union, MoneyGram |
| Supply Ability: | 100,000pcs per month |
| Operation System: | Windows Mobile 6.5 | CPU: | Hisilicon K3, ARM 926E, 533MHz |
|---|---|---|---|
| Memory: | 128MB RAM + 256MB Flash ROM Expansion (MicroSD): 32G (Maximum) | Display: | 3.2'' TFT QVGA Color Touch Screen; Resolution 240*320 Dpi |
| Entry Method: | 12 Alpha/numeric Keys, 12 Function Keys, 5 Navigation Keys, 2 Scan Keys, 1 Reset Key; Attached Stylus. | Power: | Rechargeable 3.7V, 2400 MAh Battery; Charging Time: 6~7 Hours |
| Dimensions: | (w X D X H): 152mm X 68mm X 27mm | Weight: | 260g (Include Battery) |
| High Light: | rfid card reader,rfid long range reader |
||

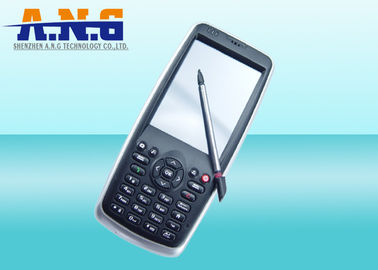

Windows mobile 6.5 OS rugged barcode scanner 13.56MHz rfid reader handheld
CI360 is with windows mobile 6.5 OS, 3.2’’ color touch screen, and it provides users with an extremely friendly interface for any field worker application. It with built-in 13.56MHz RFID reader, and integrate 1D barcode scanner, users can send scanned barcode and transmit in real time via Wi-Fi or GPRS. The built-in SIRF GPS module ensures simple and fast detection of current location and thus accelerated positioning and navigation.
Data Sheet
| Operation System | Windows Mobile 6.5 |
| CPU | Hisilicon K3, ARM 926E, 533MHz |
| Memory |
128MB RAM + 256MB Flash ROM Expansion (MicroSD): 32G (Maximum) |
| Display | 3.2'' TFT QVGA color touch screen; resolution 240*320 dpi |
| Entry Method | 12 alpha/numeric keys, 12 function keys, 5 navigation keys, 2 scan keys, 1 reset key; Attached stylus. |
| Communication |
WLAN: IEEE802.11b/g USB/Serial port: Micro USB 2.0 Audio: Speaker/microphone GSM/GPRS: 850/900/1800/1900MHz (voice communication) Bluetooth: Ver. 2.1 + EDR class 2.0 |
| Power |
Rechargeable 3.7V, 2400 mAh battery; Charging time: 6~7 hours |
| Functions |
RFID: HF:13.56M (14443A protocol) LF: 125K/134.2K (optional) Barcode Scanner (1D): laser barcode reader GPS: Integrated SIRF Camera: 1.3 mega pixel, with flashlight |
| Physical |
Dimensions (w x d x h): 152mm x 68mm x 27mm Weight: 260g (Include battery) |
| Durability |
Temperature in Operation: 0 to 50 °C Temperature in Storage: -10 to 50 °C Humidity in Operation: 20% to 85% (non-condensing) Humidity in Storage: 20% to 85% (non-condensing) Drop Test: 1.2m drop onto concrete Protection Rate: IP54 |
Support GPS, GPRS/GSM:
Integrated 1D Barcode reader and RFID reader:
If you are interested in this reader, please welcome to send us an inquiry!
