| Place of Origin: | Guangdong, China |
| Brand Name: | ANG |
| Certification: | ISO |
| Model Number: | J102 |
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | Depend on quantity |
| Packaging Details: | 1pc per box |
| Delivery Time: | 2~5 days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 500,000pcs per month |
| Specification: | 86x86x16mm | Operating Voltage: | DC 9V-16V |
|---|---|---|---|
| Consumed Current: | <60mA | Frequency: | 125Khz |
| Read Range: | 1-5cm |

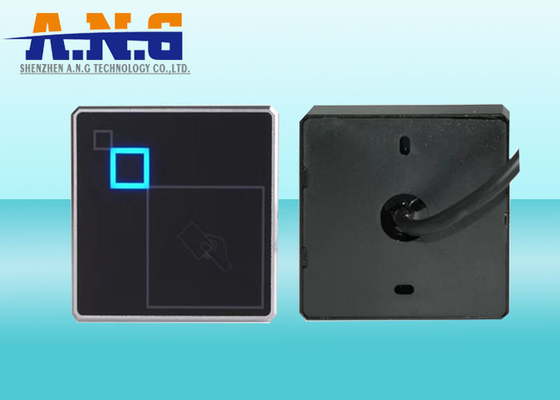

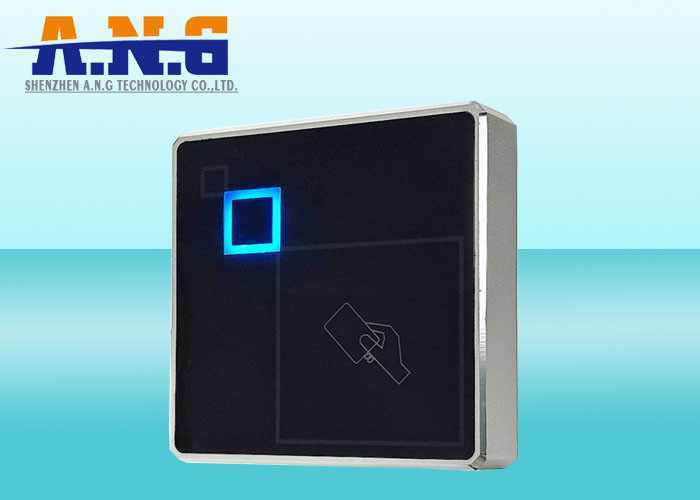

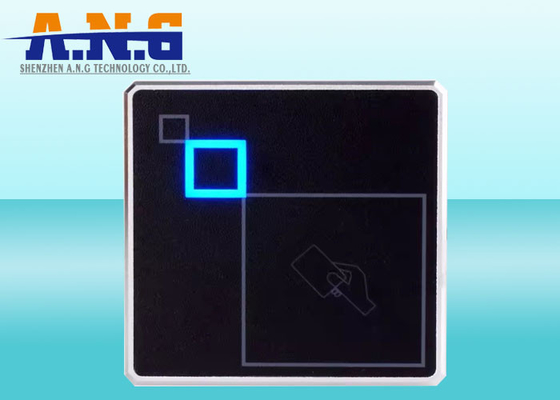

Outdoor Waterproof RFID Access Control Door Lock Wiegand 26/34 125kHz RFID Reader
|
Item
|
Parameters
|
|
Product name
|
125khz Rfid Reader
|
|
Material
|
Zine alloy
|
|
Frequency
|
125KHz (optional 13.56MHz)
|
|
Support cards
|
TK4001/ EM4100 etc
|
|
Read Range
|
1~5cm
|
|
Operating Voltage
|
DC 9V-16V
|
|
Consumed Current
|
<60mA
|
|
Reader Interval
|
<0.5S
|
|
Format
|
Wiegand 26/ Wiegand 34/ RS232/ RS485 (optional)
|
|
Distance of Transmission
|
WG26/34<100M, RS232<10M, RS485<1200M
|
|
Operating Temperature
|
-25ºC ~ +75ºC
|
|
Size
|
86*86*16mm
|
|
Status Indication
|
LED (blue for standby, Green for reading card)
|
