| Place of Origin: | Guangdong, China |
| Brand Name: | ACS |
| Certification: | CE, Rosh |
| Model Number: | ACM39U-Y3 |
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | Depend on quantity |
| Packaging Details: | 1pc per box |
| Delivery Time: | 2~5 days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 500,000pcs per month |
| Standard: | ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V | Protocol: | T=0; T=1; Memory Card Support |
|---|---|---|---|
| Specification: | 70.0 Mm (L) X82.0 Mm (W) X10.0 Mm (H) | Weight (G): | 32 G |

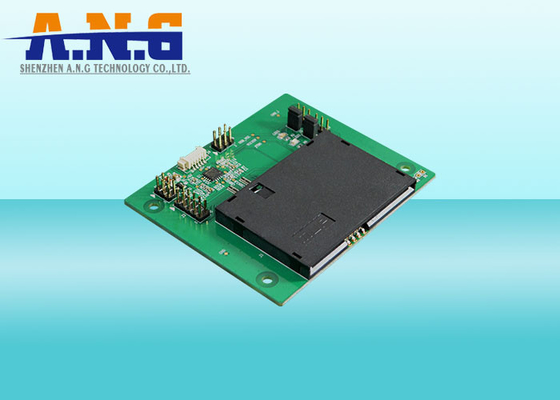

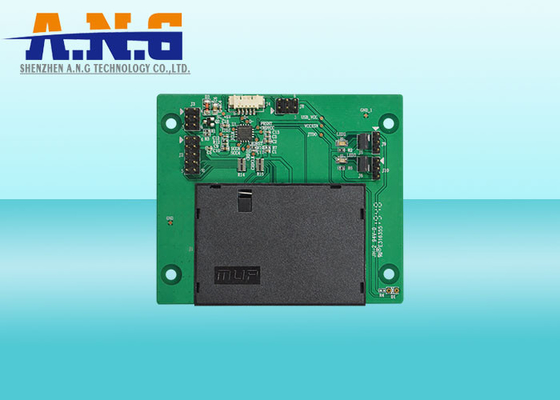

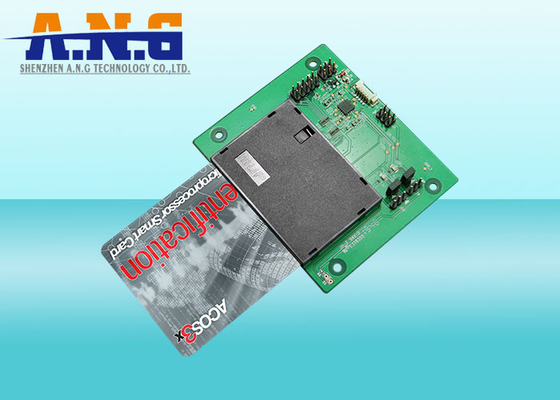

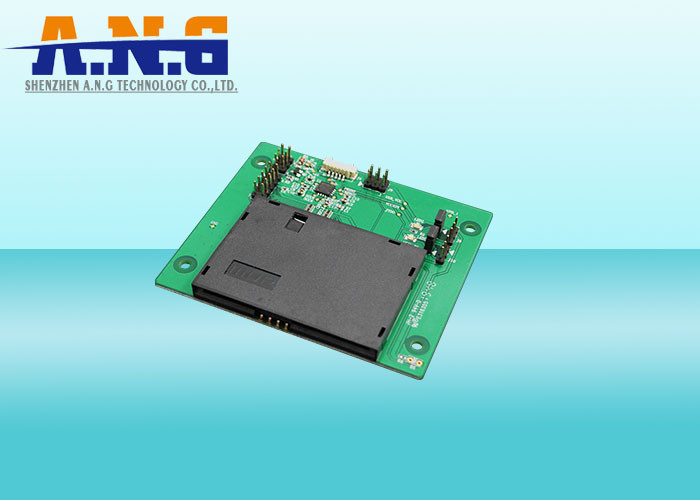

ACM39U-Y3 Smart Card Reader Module ISO 7816 CAC SIPRNET J-LIS EMV Lever 1 USB Card Reader
Feature
Specification
| Physical Characteristics | |
| Dimensions (mm) | 70.0 mm (L) × 82.0 mm (W) × 10.0 mm (H) |
| Weight (g) | 32 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | 1 x 5 Pins Header Connector; |
| 2 x 3 Pins Header Connector | |
| Power Source | From USB Port |
| Speed | USB Full Speed (12 Mbps) |
| Contact Smart Card Interface | |
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V) |
| Protocol | T=0; T=1; Memory Card Support |
| Others | CAC, PIV, SIPRNET, J-LIS Smart Cards |
| Certifications/Compliance | |
| Certifications/Compliance | EN60950/IEC 60950 |
| ISO 7816 | |
| USB Full Speed | |
| EMV™ Level 1 (Contact) | |
| PC/SC | |
| CCID | |
| CE | |
| FCC | |
| WEEE | |
| RoHS | |
| REACH | |
| Microsoft® WHQL | |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® |
| Linux® | |
| MAC OS® | |
| Android™ | |
| Solaris | |
