| Place of Origin: | Guangdong, China |
| Brand Name: | ANG |
| Certification: | ISO |
| Model Number: | A618 |
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | Depend on quantity |
| Packaging Details: | 1pc per box |
| Delivery Time: | 2~5 days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 500,000pcs per month |
| Operating System: | Android5.1 | CPU: | Quad-Core Cortex-A9 Main Frequency 1.4GHz |
|---|---|---|---|
| Data Storage: | Emmc 8g(Default),Max Support 64G TF Card | Display: | 5.1 Inch TFT-LCD,800*480 |
| Data Capacity: | More Than 2 Million Detailed Data For Console Stor | Communication Interface: | USB-Host,USB-OTG,HDMI,RS485 And Ttl-232 Optional |

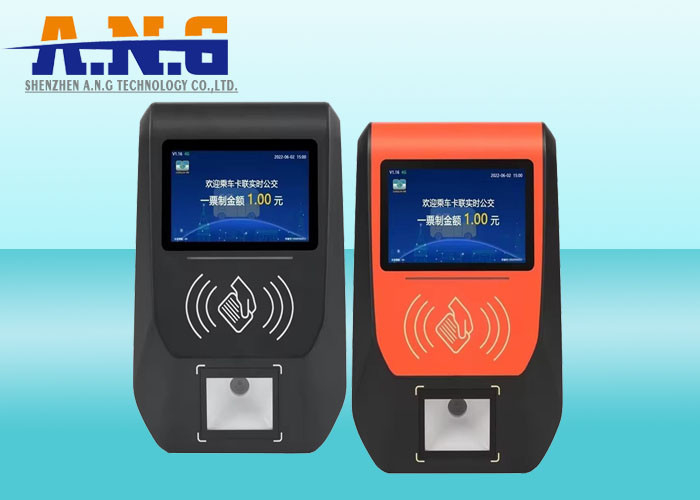

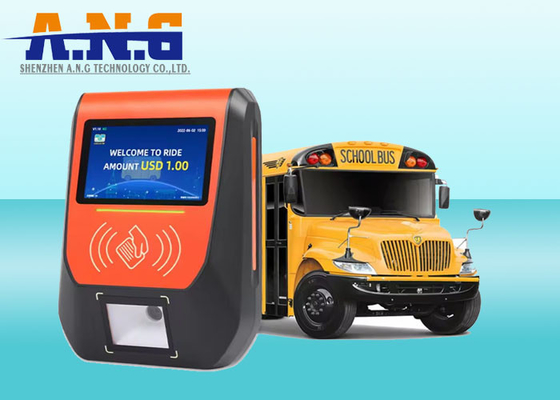

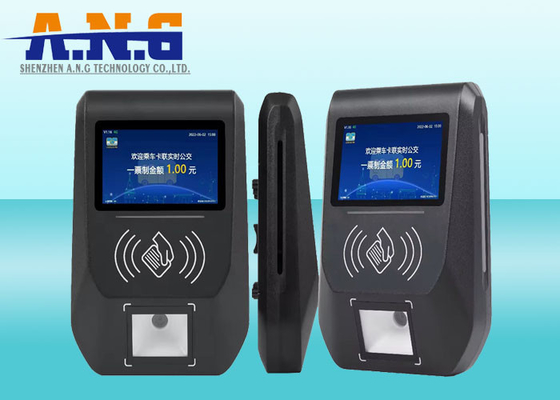

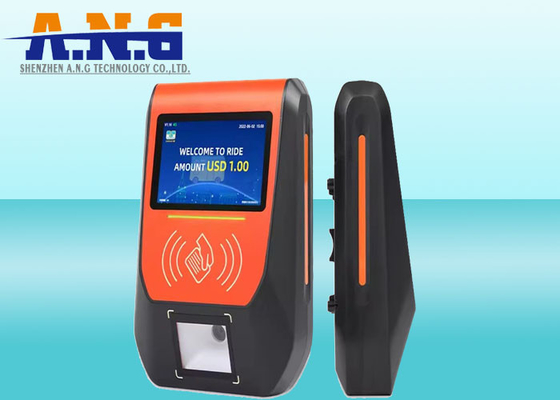

4G WiFi Ethernet Android NFC Bus Card Reader RFID Bus Ticket Validator with Qr Code
|
Smart Bus Validator
|
CL-A0618B
|
Operating System
|
Android5.1
|
|
CPU
|
Quad-core cortex-a9 main frequency 1.4GHz,integrated GPU Mali-400 MP4
|
Data storage
|
eMMC 8G(default),Max support 64G TF card
|
|
Working temperature
|
-25ºC~65ºC
|
Housing material
|
240x170x74.7mm
|
|
Display
|
5.1 inch TFT-LCD,800*480
|
Scanning
|
Wide angel/QR /customized
|
|
Scan distance
|
0CM -15CM
|
|
|
|
Data capacity
|
more than 2 million detailed data for console storage, extensible
|
Communication interface
|
USB-HOST,USB-OTG,HDMI,RS485 and TTL-232 optional
|
|
Support card type
|
S50 Classic, Desfire, support CPU card
|
Card capacity
|
5 million pcs
|
|
Working frequency
|
13.56Mhz
|
Reading distance
|
0~50mm
|
|
RFID support standard
|
ISO-14443 Type A/B
|
Printing module
|
Support external POS58printer (need 5pinaviation plug turn DB9 cable)
|
|
Position way
|
GPS,beidou (optional)
|
Working mode
|
Stand-alone or connect to server
|
|
Power consumption
|
≤10 W
|
Wireless communication
|
2G,3G,4G
|
|
Warning function
|
Warning when card balance is insufficient or data memory is full
|
Data collection mode
|
2G,3G,4G and USB collection,WIF and bluetooth optional
|
