| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | A.N.G |
| Certification: | CE,ISO,ROHS |
| Model Number: | AR-C5S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Depends on quantities |
| Packaging Details: | 1pcs/box,100pcs/carton,100pcs 4KG |
| Delivery Time: | 2-15 Days |
| Payment Terms: | T/T ,Paypal,Western Union, MoneyGram |
| Supply Ability: | 100,000pcs per month |
| Brand Name: | A.N.G | Type: | IOT Handheld Terminal |
|---|---|---|---|
| CPU: | Quad-Core ARM Cortex A7 1.3GHz | Graphics Processor: | Mali760-MP2 |
| OS: | Android 5.1 | Port: | Micro USB2.0, Support OTG |
| High Light: | rfid card reader,rfid long range reader |
||

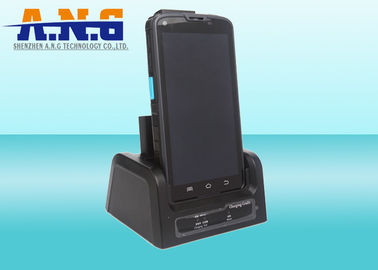

Android 5.1 OS RFID reader C5S Industrial Grade Handheld Smart Phone PDA
Advae of C5S:
Data Sheet:
| Basic Parameters | |||||
| Type | IOT Handheld Terminal | ||||
| CPU | Quad-Core ARM Cortex A7 1.3GHz | ||||
| Graphics Processor | Mali760-MP2 | ||||
| Memory | 2G LPDDR2 RAM+16G EMMC ROM | ||||
| OS | Android 5.1 | ||||
| Color | Black / White | ||||
| Display | 5'' high-resolution Multi-touch screen; Resolution: 1280*720 dpi | ||||
| Input Method | Handwriting ,Stroke,Pinyin input method | ||||
| Communication |
GSM / WCDMA / FDD / TDS / TDD; GSM Quad Band, TDS B34/39, WCDMA B1/2/5/8, TDD B38/39/40, FDD B1/3/7/8/20 |
||||
| GPS | Built-in GPS, support A-GPS, GPS+BDS, Meter Level Localization | ||||
| Port | Micro USB2.0, support OTG | ||||
| Memory Interface | Micro SD card, expansion: 2G to 32G | ||||
| Bluetooth | Bluetooth 4.0+EDR | ||||
| Speaker | Single speaker,8±15% ohm | ||||
| WLAN | Support 802.11a/b/g/n mode and WEP.WPA/WPA2-PSK/WAPI PSK/802.1*EAP Encryption protocol | ||||
| Camera | 8.0 Mega Pixel rear camera; 2.0 Mega Pixel front camera; Auto focus; with LED light | ||||
| Battery | Li-Polymer 4000mAh | ||||
| Standby Time | One week | ||||
| Duration | 20 hours ( full function ) | ||||
|
Certification/ Protection |
3C,CE / IP65 | ||||
| IOT Functions(RFID, Barcode) | |||||
| IOT Barcode | 1D Laser Scanning module,2D Scanning module | ||||
| 1D Barcode | Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codebar, Interleaved 2 of 5, China post 25, ISBN/ISSN, Code93, UCC/EAN-128, GS1 Databar, HIBC, etc | ||||
| 2D Barcode | Honeywell / MOTO 2D Scanning module; Support 1D; Support Code: QR,PDF417 Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codebar, Interleaved 2 of 5, China post 25, ISBN/ISSN, Code93, UCC/EAN-128, etc | ||||
| IOT RFID |
* Fully support NFC. Support 14443A/B,15693 Protocol, Reading Distance 2cm~5cm, reading position, battery cover. * Built-in 900M UHF RFID (EPC C1/G2, 18000-6C Protocol), reading and writing tags (optional). |
||||
| Working Conditions | |||||
| Operation Temperature | -25 ~ 65 ℃ | ||||
| Storage Temperature | -30 ~ 70 ℃ | ||||
| Humidity | 0 ~ 95% | ||||
| Product Features | |||||
| Gravity Sensor Support | Light Sensor Support | Distance Sensor Support | Receiver Support | ||
| Microphone Support | Headset Support | Vibrator Support | |||
| Model | Optional | Standard | |||
| C5S Series |
● 1D Laser Scanning module ● 2D Scanning module ● 900M UHF RFID ● 900M UHF RFID+2D Barcode Scanner ● Power Infrared |
Quad-Core,NFC,Bluetooth 4.0,WIFI2.4G+5G,GPS+BDS,CDMA GSM,8.0 Mega Pixel rear camera,2.0 Mega Pixel front camera | |||
Product show:
1. Sun visible
2. Both front and rear cameras available
3. Colors: Black & White available
4. One hand operation, reading RFID cards and barcodes easily
If you are interested in this reader, please welcome to send us an inquiry!
