PC-Linked USB 13.56Mhz HF NFC Reader Writer ACR1252U

PC-Linked USB 13.56Mhz HF NFC Reader Writer ACR1252U

    • PC-Linked USB 13.56Mhz HF NFC Reader Writer ACR1252U
    • PC-Linked USB 13.56Mhz HF NFC Reader Writer ACR1252U
    • PC-Linked USB 13.56Mhz HF NFC Reader Writer ACR1252U
    • PC-Linked USB 13.56Mhz HF NFC Reader Writer ACR1252U
  • PC-Linked USB 13.56Mhz HF NFC Reader Writer ACR1252U

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: ACS
    Certification: ISO,CE
    Model Number: ACR1252U

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Packaging Details: 1pc per white box
    Delivery Time: 1~3 working days
    Payment Terms: T/T, Western Union,Paypal
    Supply Ability: 500,000pcs per month
    Contact Now
    Detailed Product Description
    Dimension: 98.0 Mm (L) X 65.0 Mm (W) X 12.8 Mm (H) Weight: 81g
    Procotol: ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa Frequency: 13.56Mhz
    Interfacec: USB Color: Black

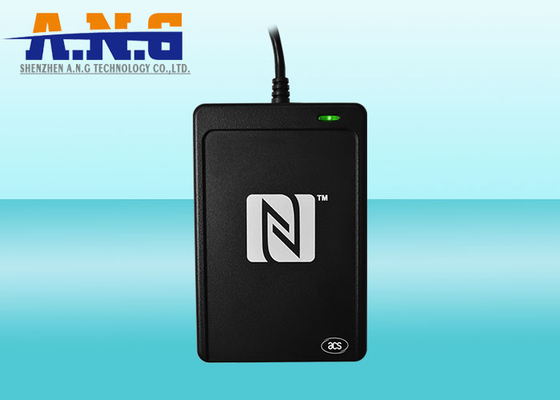

    PC-Linked USB 13.56Mhz HF NFC Reader Writer ACR1252U



    The ACR1252U USB NFC Reader III is an NFC Forum-certified PC-linked reader, developed based on 13.56Mhz contactless technology. It has a SAM (Secure Access Module) slot which can be used together with a SAM card for key diversification and mutual authentication, providing high-level security in contactless transactions. Post-deployment firmware upgrade is also supported, eliminating the need for additional hardware modification.


    ACR1252U is capable of the three modes of NFC, namely: card reader/writer, card emulation and peer-to-peer communication. It supports ISO 14443 Type A and B cards, MIFARE®, FeliCa, and ISO 18092–compliant NFC tags. It also supports other NFC devices with an access speed of up to 424 Kbps and proximity operating distance of up to 50mm (depending on tag type used).

    Compliant with both CCID and PC/SC, this plug-and-play USB NFC device allows interoperability with different devices and applications. It is thus ideal for unconventional marketing and advertising applications like smart posters.

    The ACR1252U comes with an optional stand to hold the smart card reader at an optimal angle, so that users can tap contactless cards or NFC-enabled devices onto the ACR1252U with ease.



    FEATURE



    • USB 2.0 Full Speed Interface
    • CCID Compliance
    • USB Firmware Upgradeability
    • Smart Card Reader:
      • Read/write speed up to 424 kbps
      • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
      • Supports ISO 14443 Type A and B cards, MIFARE®, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
      • Supports MIFARE® 7-byte UID, MIFARE® Plus, and MIFARE® DESfire
      • Built-in anti-collision feature (only 1 tag is accessed at any time)
      • One ISO 7816–compliant SAM slot (Class A)
      • NFC Support:
        • NFC Reader/Writer Mode
        • Peer-to-Peer Mode
        • Card Emulation Mode
    • Application Programming Interface:
      • Supports PC/SC
      • Supports CT-API (through wrapper on top of PC/SC)
    • Peripherals:
      • User-controllable bi-color LED
      • User-controllable buzzer
      • SAM Slot
    • Available Model Number:
      • USB Type-A: ACR1252U-M1
      • USB Type-C: ACR1252U-MF





    TECH SPEC



    Physical Characteristics
    Dimensions (mm) 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
    Weight (g) 81 g
    USB Interface
    Protocol USB CCID
    Connector Type USB Type-A (ACR1252U-M1), USB Type-C (ACR1252U-MF)
    Power Source From USB port
    Speed USB Full Speed (12 Mbps)
    Cable Length 1.0 m, Fixed
    Contactless Smart Card Interface
    Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa
    Protocol ISO 14443-4 Compliant Card, T=CL
    MIFARE® Classic Card, T=CL
    ISO18092, NFC Tags
    FeliCa
    SAM Card Interface
    Number of Slots 1 Standard SIM-sized Card Slot
    Standard ISO 7816 Class A (5V)
    Protocol T=0; T=1
    Built-in Peripherals
    LED 1 bi-color: Red and Green
    Buzzer Monotone
    Other Features
    Firmware Upgrade Supported
    Certifications/Compliance
    Certifications/Compliance EN 60950/IEC 60950
    ISO 18092
    ISO 14443
    ISO 7816 (SAM Slot)
    USB Full Speed
    PC/SC
    CCID
    NFC Forum Certification Mark
    Felica Performance Certification
    J-LIS (Japan)
    VCCI (Japan)
    MIC (Japan)
    KC (Korea)
    Microsoft® WHQL
    CE
    FCC
    RoHS
    REACH
    Device Driver Operating System Support
    Device Driver Operating System Support Windows® CE
    Windows®
    Linux®
    MAC OS®
    Solaris
    Android™

    PC-Linked USB 13.56Mhz HF NFC Reader Writer ACR1252U



    APPLICATION

    • e-Government
    • Banking & Payment
    • e-Healthcare
    • Network Security
    • Access Control
    • e-Purse & Loyalty
    • Transportation
    • P2P Communication
