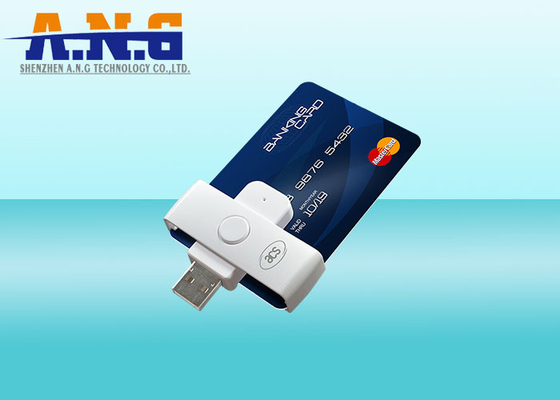

ISO 7816 EMV PocketMate USB Type-A PC-Linked Smart Card Reader Writer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ACS
Certification:	ISO,CE
Model Number:	ACR39U-N1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Packaging Details:	1pc per white box
Delivery Time:	1~3 working days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	500,000pcs per month

Contact Now

Detailed Product Description

Dimension:	58.0 Mm (L) X 20.0 Mm (W) X13.7 Mm (H)	Weight:	12g
Procotol:	T=0; T=1; Memory Card Support	Standard:	ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V)
Power Source:	USB	Interfacec:	Type-A

ISO 7816 EMV PocketMate USB Type-A PC-Linked Smart Card Reader Writer

ACR39U PocketMate II is a portable smart card reader that is more than meets the eye. The swivel-usb-go design keeps it safe when not in use. The reader is capable of supporting demanding smart card applications using full-sized contact smart cards. No larger than a USB stick, it embodies reliable functionality and nifty design, and is highly durable as it is able to last for 100,000 card insertion cycles.

ACR39U PocketMate II supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and microprocessor cards with T=0 and T=1 protocol. In addition, it supports a wide variety of memory cards, including the Department of Defense Common Access Card (CAC), the SIPRNET Card and the Malaysian Identity Card (MyKad). This makes it ideal for a broad range of solutions, such as PIV, Physical and Logical Access Control, Digital Signature, and Online Banking applications.

This sleek and simple pocket-sized reader is designed to be used anytime and anywhere. Being PC/SC and CCID-compliant, ACR39U-N1 PocketMate II can easily be integrated in a computer-based environment. Using the standard USB Type-A connector, it helps provide wide-ranging support. Its drivers are compatible with operating systems such as Windows®, Solaris™, Linux®, and macOS. In addition, ACR39U PocketMate II may be used on mobile devices running on Android™ versions 3.1 and later.

ACR39U PocketMate II is the perfect smart card reader for your smart card solution.

FEATURE

USB 2.0 Full Speed Interface
Compatible with USB 3.0
Plug and Play – CCID support brings utmost mobility
Swivel Motion Design
Smart Card Reader:
- Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
- Supports CAC
- Supports SIPRNET Card
- Supports J-LIS Card
- Supports microprocessor cards with T=0 or T=1 protocol
- Supports memory cards
- Supports Mykad Card
- Supports PPS (Protocol and Parameters Selection)
- Features Short-Circuit Protection
Application Programming Interface:
- Supports PC/SC
- Supports CT-API CT-API (through wrapper on top of PC/SC)
Supports Android™ 3.1 and later

TECH SPEC

Physical Characteristics
Dimensions (mm)	58.0 mm (L) x 20.0 mm (W) x13.7 mm (H)
Weight (g)	12 g
USB Interface
Protocol	USB CCID
Connector Type	Standard Type-A
Power Source	From USB port
Speed	USB Full Speed (12 Mbps)
Contact Smart Card Interface
Number of Slots	1 Full-sized Card Slot
Standard	ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol	T=0; T=1; Memory Card Support
Others	Mykad Card, CAC, PIV, SIPRNET, J-LIS Smart Cards
Certifications/Compliance
Certifications/Compliance	EN62368/IEC 62368 CE FCC RoHS REACH EMV™ Level 1 (Contact) J-LIS KCC PBOC TAA (USA) UKCA UL VCCI WEEE ISO 7816 USB 2.0 Full Speed PC/SC CCID Microsoft® WHQL
Device Driver Operating System Support
Device Driver Operating System Support	Windows® Linux® macOS® Solaris™ Android™
