| Place of Origin: | Guangdong, China |
| Brand Name: | ACS |
| Certification: | ISO,CE |
| Model Number: | ACR39U-UF |
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | 1pc per white box |
| Delivery Time: | 1~3 working days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 500,000pcs per month |
| Dimension: | 72.2x69x14.5mm | Weight: | 65g |
|---|---|---|---|
| Procotol: | T=0; T=1; Memory Card Support | Standard: | ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V) |
| Power Source: | Type-C Port | Interfacec: | Type-C |

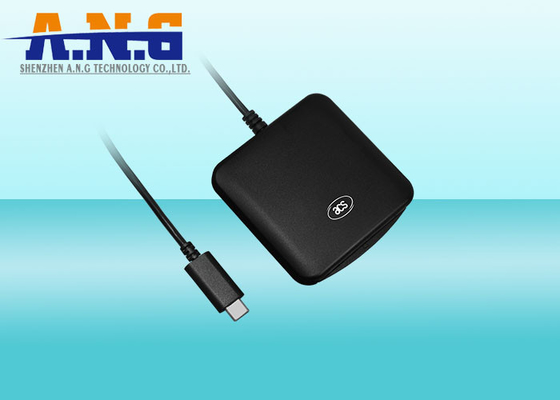

ISO 7816 EMV Smart Card Reader Writer Type-C Portable Contact IC Chip Reader for Payment
FEATURE
TECH SPEC
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | 72.2 mm (L) x 69.0 mm (W) x 14.5 mm (H) |
| Weight (g) | 65.0 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | Standard Type-C |
| Power Source | From USB port |
| Speed | USB 2.0 Full Speed (12 Mbps) |
| Cable Length | 1.5 m, Fixed |
| Contact Smart Card Interface | |
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V) |
| Protocol | T=0; T=1; Memory Card Support |
| Others | Mykad Card, CAC, PIV, SIPRNET, J-LIS Smart Cards |
| Certifications/Compliance | |
| Certifications/Compliance | EN62368/IEC 62368 CE FCC RoHS REACH EMV™ Level 1 (Contact) J-LIS KCC PBOC TAA (USA) UKCA VCCI WEEE ISO 7816 USB 2.0 Full Speed PC/SC CCID Microsoft® WHQL |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows® Linux® macOS® Solaris™ Android™ |
APPLICATION
