| Place of Origin: | Guangdong, China |
| Brand Name: | ANG |
| Certification: | ISO |
| Model Number: | IBR-T003 |
| Minimum Order Quantity: | 100 |
|---|---|
| Packaging Details: | 10pcs per batch |
| Delivery Time: | 8~10 working days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 500,000pcs per month |
| Material: | Copper | Cable Length: | 20cm Or Cusomize |
|---|---|---|---|
| Standard: | 1-wire | Application: | Access Control, Vehicles Tracking |

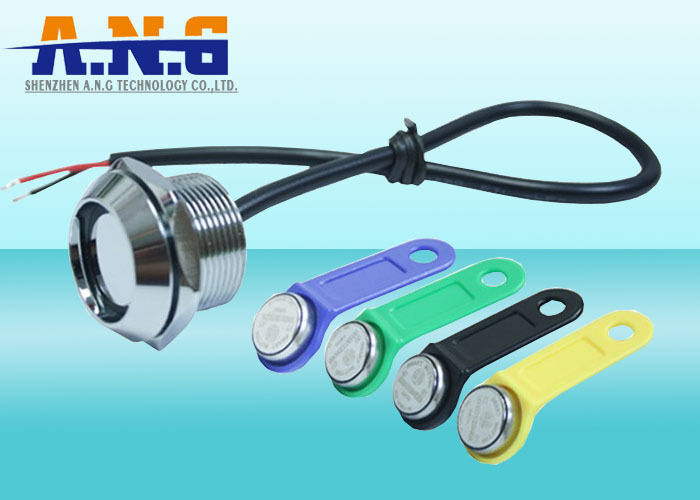

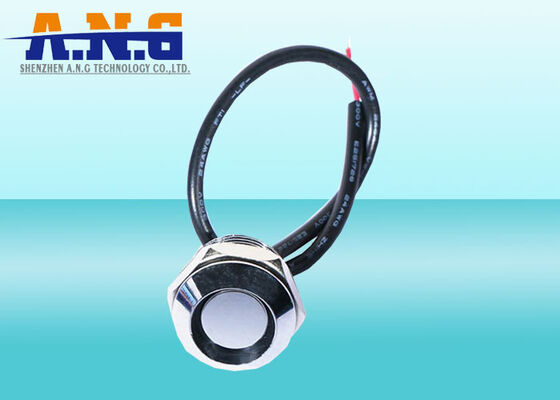

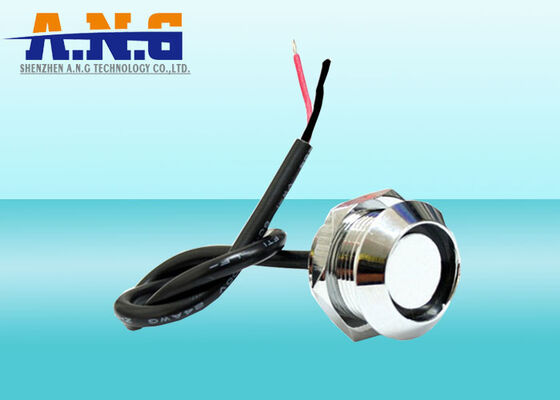

Waterproof Copper iButton Reader Dallas Key Probe for Ds1990 TM1990
|
The reader is designer to work with Dallas chips series DS19xx
|
|
|
1.Wires :
|
White - 1 wire signal
|
|
|
Brown - GND
|
|
2.Application
|
Acces control, vehicles tracking
|
|
3.Casing
|
Chromium plated steel
|
|
4.Ring material
|
Ferrite steel + Cu + Ni + Cr+3
|
|
5.Signal joint material
|
Brass + Ni +Cr+3
|
|
6.Wire
|
20cm, can be customized
|
|
7.Fastening method
|
M20x1 screw
|
|
8.Work enviroment
|
Residential, commercial and lightly industrial
|
|
9.Working temperature
|
From -40 ºC to +85 ºC
|
|
10.Humidity
|
Up to 90%
|
