Place of Origin: | Guangdong, China |
Brand Name: | ANG |
Certification: | ISO |
Model Number: | IB0 |
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | 1pc per box |
Delivery Time: | 8~10 working days |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 500,000pcs per month |
Material: | ABS | Size: | 51mm(L)X36mm(W)X34mm(H) |
---|---|---|---|
Weight: | 150g | Color: | Black |
Read Card: | DS1990, TM1990A-F5 And Other Ibutton Keys |

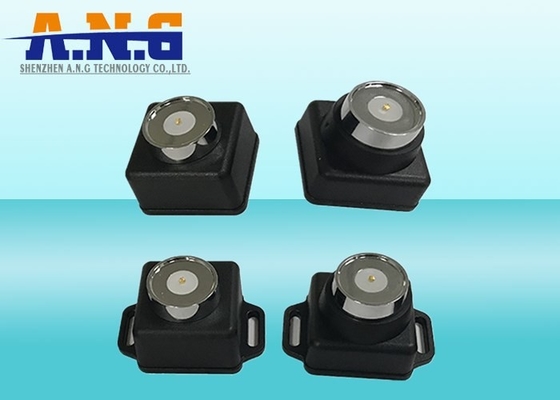

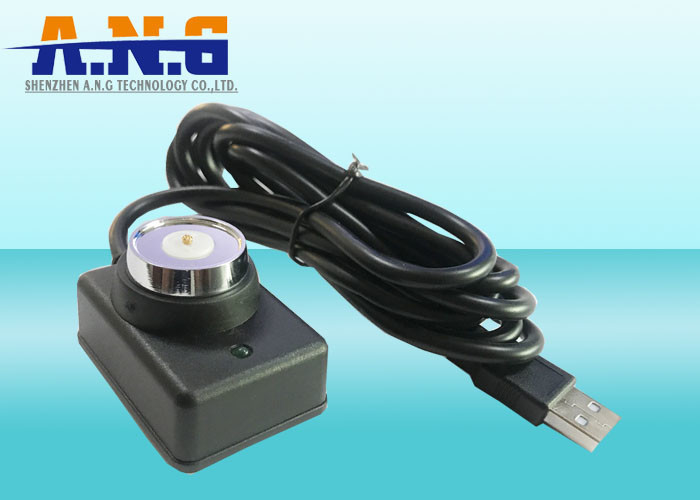

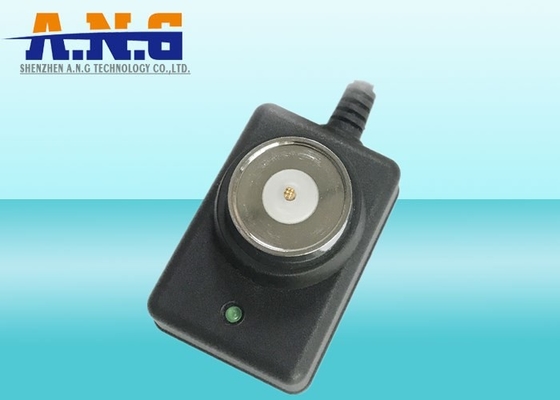

Factory Customize Magnetic Ibutton Reader USB iButton Probe TM Card Reader
IB0 is a multi-function card reader that can help to read ibutton keys, suitable for various chips and applications, such as membership cards, health cards, RFID cards, and is equipped with a variety of configurations, you can easily Your own situation needs to customize it with the application.
1.FEATURES:
Magnetic IBUTTON card reader
Read DS1990, TM1990A-F5 and other ibutton keys
LED provides operating status
2.TECHNICAL SPECIFICATION:
Electrical | |
Power suplly | Via USB port |
Current | 45~65mA |
Interconnection | |
Interface | USB2.0,USB-OTG(Android 3.1 above) |
Mechanical | |
Body | ABS |
Dimensions | 51mm(L)X36mm(W)X34mm(H) |
Weight | 150g |
Color | Black |
Environment | |
Operation temp | -20℃ ~ 55 ℃ |
Operation humidity | 10%~90% relative humidity |
Storage temp | -30℃~70℃ |
Storage humidity | 10%~90% relative humidity |
Ibutton card | |
Read card | DS1990, TM1990A-F5 and other labels |
Head life | Approx 1000,000 passes |
Parity and LRC checking | Built-in LED for good reading indication |
Operation | |
Operating Systems | Win7, Win 2008 ,Vista, Win 2003, Win 2000, XP, Linux |
