| Place of Origin: | Guangdong, China |
| Brand Name: | ZKTech |
| Certification: | ISO |
| Model Number: | Live 20R |
| Minimum Order Quantity: | 5 |
|---|---|
| Packaging Details: | 1pc per box |
| Delivery Time: | 2~5 days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 500,000pcs per month |
| Supported OS: | Win7/Win8/Win10/Windows XP/Vista/Linux/Android | Resolution: | 500dpi |
|---|---|---|---|
| Image Size: | 300*400 | Image Capture Area: | 15.24*20.32mm(Fap20) |
| Device Weight (with Cable): | 80g | Specification: | 49x49x18mm |

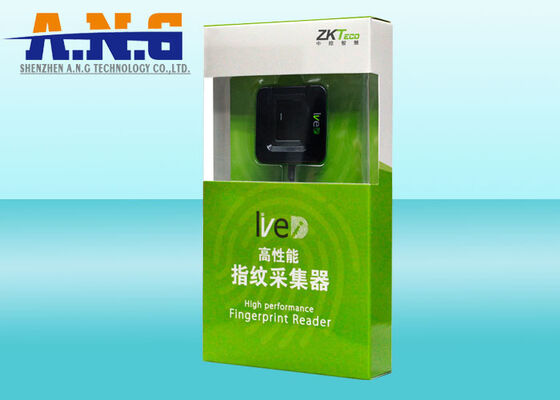

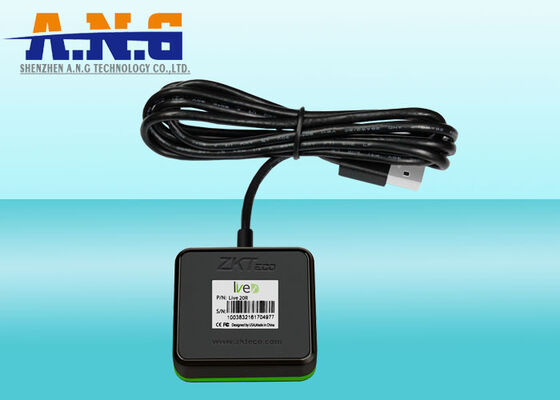

Highspeed Desktop Live 20r USB Biometric Fingerprint Scanner with Sdk
Specification
|
Interface
|
USB 2.0
|
|
Supported OS
|
WIN7/WIN8/WIN10/Windows XP/Vista/Linux/Android
|
|
Resolution
|
500dpi
|
|
Image capture area(platen size)
|
15.24*20.32mm(FAP20)
|
|
Sensor type
|
Optical
|
|
Touth Surface Area
|
16.5*23mm
|
|
Image Size
|
300*400
|
|
Device weight (with cable)
|
80g
|
|
Supply voltage
|
5.0V ±5% supplied by USB
|
|
Supply current scanning
|
200 mA (Typical)
|
|
Supply current idle mode
|
120 mA (Typical)
|
|
Supply current suspend mode
|
2 mA (Maximum)
|
|
ESD susceptibility
|
>15 kV, mounted in case
|
|
Operating temperature
|
0 - 40°C
|
|
Operating humidity
|
20% - 80% non-condensing
|
|
Storage temperature
|
-10 - 60 °C
|
|
Storage humidity
|
20% - 90% non-condensing
|
