| Place of Origin: | Shen Zhen, CHINA |
| Brand Name: | A.N.G |
| Certification: | CE,ISO,ROHS |
| Model Number: | AT-H0812 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Depending on the chip, material, printing |
| Packaging Details: | 1000pcs / tie |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T or Paypal or western Union, *30% by T.T. in advance,70% by T.T before shipment for more than 2,000USD.100% by T.T. in advance for less than 2,000USD. |
| Supply Ability: | 5,000,000pcs per month |
| Keywords：: | RFID Tags | Thickness：: | 0.8mm (Average) |
|---|---|---|---|
| Reading Range: | 15cm | Chip: | 203 |
| NFC Protocol: | Type 2 Type 4 | Communication Rate: | 106Kbit/s |
| Size: | 8.2mm*12.2mm |

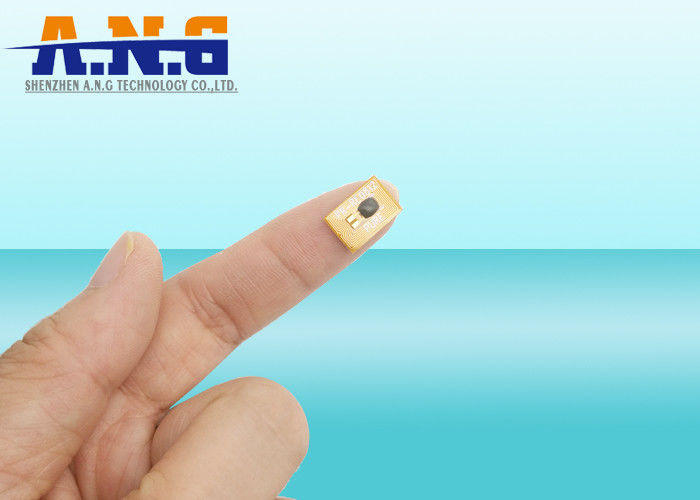

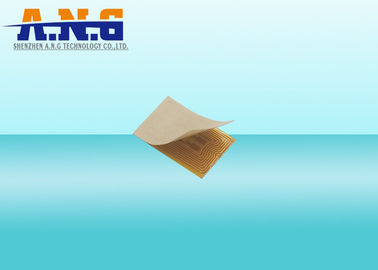

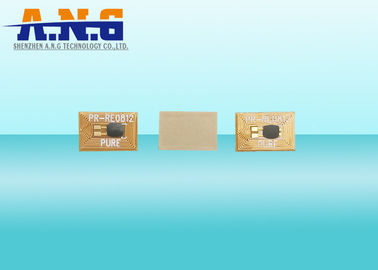

Mini NFC Tag Heat Resistance ISO/IEC 14443A FPCB 213 NFC tags
This HF RFID tag uses special material. It can be better thermostable;Read and write speedly and stably;properly encapsulated in high temperature injection products, i.e., smart watches, RFID silicone wristband, cell phone shell, etc.
|
1. Chip
|
203 |
|---|---|
|
2. Dimension
|
8.2mm*12.2mm |
|
3. Material
|
Copper wire,FPCB |
|
4. Operating Frequency
|
HF CHIP(13.56MHz) |
|
5. Standard
|
ISO14443 |
|
6. Printing
|
Silkscreen Printing/Laser Printing Logo & Number |
|
7. Reading Distance
|
15cm |
|
8. Storage Temperature
|
320℃ |
|
10. Optional
|
-Wet inlay, dry inlay, label (paper label, PVC label, etc.) -Silk-screen printing with logo, color -3M adhesive layer -Anti-metal layer -Chip encoding -Crafts can be customized in accordance with customer requirements for different profucts |
|
11. Applications
|
-Logistics, supply chain, inventory -Warehouse, retail -Clothing, apparel and other item-level retail -Library, media, documents and files -Asset management -Industrial and manufacturing -Security, aviation -Embedded applications -Returnable transport units (RTUs) -Medical card, pharmaceutical and healthcare, health clubs, hospitals, etc. |
