| Place of Origin: | Shenzhen, China |
| Brand Name: | A.N.G |
| Certification: | CE,ISO, SGS |
| Model Number: | AT-SH112 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Depending on the chip, material, printing |
| Packaging Details: | According to different customer choice |
| Delivery Time: | 2-15 Days |
| Payment Terms: | T/T,Paypal,Western Union, MoneyGram |
| Supply Ability: | 1000,000pcs per month |
| Item Type: | RFID Tyre Patch | Dimension: | 110*40*3mm Or Customized |
|---|---|---|---|
| Chip: | Alien, Impinj, Etc… | Endurance: | 10 Years |
| Unit Weight:: | 8g | Memory Capacity: | 512bits |
| High Light: | waterproof rfid tags,radio frequency identification tags |
||

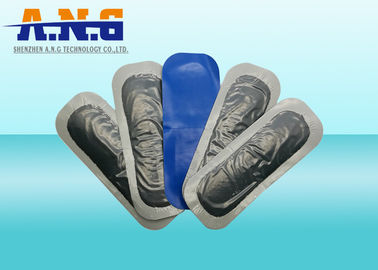

Customized Alien Tyre Patch Passive Rfid Tags For Tire Management System
A.N.G Tags is professional RFID tags manufacturer company, recently has been reported provide RFID Tyre Patch for tire management system in the tire factory and retreating company.The dimensions of this initial RFID Tyre Patch, something like a tire repair patch, the patch tags are said to be 95mm in length and 36mm in width. Once inserted (or patch) into a tire, the tire will have a unique identification number in the world. The RFID tire tag is robust can stand high crash and pressure during the tire running in the vehicle. The tire with this tag can be tracked via a handhold reading device or fixed reader. Any reader compatible with EPC G2 ISO186000-C protocol can work great with the tag. The tag has the user memory which can be written with some other information such as production time, batch, reseller, retreading etc. Any information of the tire will be recorded and store in the database for track the tire production and using record in the whole life of the tire.
Specifications
rfid passive tire tag
1.Size:95*36*2.5mm
2.Application:Vehicle tire management
3.Read Distance:0-5M
4.Frequency:860 to 960MHZ
|
Performance Index |
|
| Protocol | EPC class 1 generation 2/ISO 18000-6C |
| Frequency | 860—960MHZ |
| Read distance | 0-5m |
| Memory | 96bits EPC,512bits user memory |
| Read/write | Can read/write data into the tag |
| Unique ID | The factory programmed tag identification number is unique to prevent cloning. |
| Installation | mounted inner side of the tire |
| Dimension | 95*36*2.5mm |
| Weight | 8g |
How to use the rfid tire tags?
Package:
If you are interested in this tag, please welcome to send us an inquiry!
