Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm

Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm

    • Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm
    • Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm
    • Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm
    • Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm
  • Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm

    Product Details:

    Place of Origin: Shenzhen, CHINA
    Brand Name: A.N.G
    Certification: CE,ISO,ROHS
    Model Number: AT-SH152

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: Depending on the chip, material, printing
    Packaging Details: 1000pcs / tie
    Delivery Time: 7-15 days
    Payment Terms: T/T,Paypal,Western Union, MoneyGram
    Supply Ability: 5,000,000pcs per month
    Contact Now
    Detailed Product Description
    Keywords:: HF Tags, RFID Sticker, SMART Adhesive Size:: Rectangular 56*18mm
    Material:: Paper Chip:: ULTRALIGHT EV1
    Frequency:: 13.56MHz Colour:: White
    High Light:

    radio frequency id tags

    ,

    13.56 mhz rfid tags

    Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm

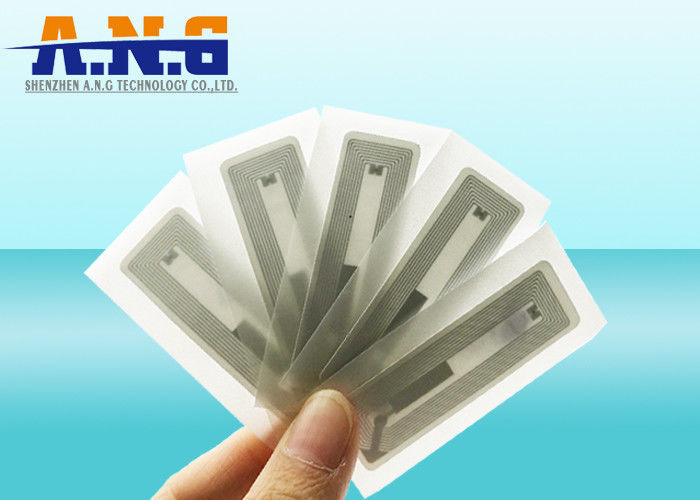

       These rectangular (56mm x 18mm) MF ULTRALIGHT EV1 RFID adhesive labels have blank matt paper on the top, which protects the chip and the antenna underneath. Thanks to their permanent adhesive layer with release paper (on the backside of the label), they can be easily fixed to the items for asset tracking. They can be personalised for example with barcode or company logo. For more infomartion please take a look at the datasheet or contact us.



    Parameter:



    Frequency
    13.56 MHz
    Compliance
    ISO/IEC 14443 Type A, NFC Forum Type 2
    Memory Size
    640-bit or 1312-bit (First 512 bits compatible to MF Ultralight® MF0ICU1)
    Features
    Serial Number: 7-Byte UID (Unique Identifier)
    ECC based originality signature
    Data integrity of 16-bit CRC, parity, bit coding, bit counting
    Fast counter transaction: < 10 ms
    Data transfer of 106 kbit/s
    True anticollision
    Available Types
    Paper Label, PVC Label, PET Label
    Dry Inlay, Wet Inlay
    Anti-tear / Tamperproof Label, Label with Cutting Lines
    Windshield Tag
    On-Metal (Anti-Metal) Label
    Certain types may not be available in all sizes
    Temperature
    -25 ̊ to 50 ̊ Celsius
    Dimensions
    According to customer’s requirements.
    Printing Options
    Full-color offset printing, Silkscreen printing
    Number Printing Options
    Inkjet, Thermal Flat, Laser



    Non-volatile memory

    • 256 bytes application memory
    • Data retention of 10 years
    • Write endurance typical 500 000 cycles

    NV-memory organization

    • Flexible file system
    • Number of applications and files per application depending on available memory
    • File types supported: standard data file, back-up data file, value file, linear record file and cyclic record file
    • File size is determined during creation

    Security

    • Based on the same Common Criteria EAL4+ certified MF DESFire EV1 platform
    • Unique 7 bytes serial number for each device
    • Optional “RANDOM” ID for enhance security and privacy
    • Mutual three-pass authentication
    • Mutual authentication according to ISO/IEC 7816-4
    • 1 card master key and up to 14 keys per application
    • Hardware DES using 56/112/168 bit keys featuring key version, data authenticity by 8 byte CMAC
    • Hardware AES using 128-bit keys featuring key version, data authenticity by 8 byte CMAC
    • Data encryption on RF-channel
    • Authentication on application level
    • Hardware exception sensors
    • Self-securing file system
    • Backward compatibility to MF3ICD40: 4 byte MAC, CRC 16

    Special features

    • Transaction-oriented automatic anti-tear mechanism
    • Configurable ATS information for card personalization
    • Backward compatibility mode to MF3ICD40
    • Optional high input capacitance (70 pF) for small form factor design (MF3ICDHQ1)



    Application:


    Public transportation
    Event ticketing
    Loyalty





    Here is a graph of the electromagnetic spectrum with the frequency bands that the RFID systems can use

    Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm
