| Place of Origin: | Made in China |
| Brand Name: | ANG |
| Certification: | CE,ISO,SGS,RoHs |
| Model Number: | AP-P11030 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | Dpending on chip, material and printing |
| Packaging Details: | plastic bags with carton outer box |
| Delivery Time: | 2~15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1,000,000 pieces per month |
| Key Words: | Rfid Abs Tag, Rfid Token Tag, Rfid Disc Tag | Material: | ABS |
|---|---|---|---|
| Shape: | DISC Token | Size: | 20mm, 25mm, 30mm, 35mm, 40mm, 52mm |
| High Light: | Contactless rfid tag,tamper proof rfid tags |
||

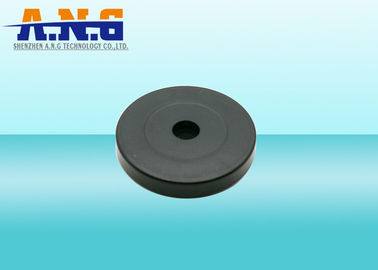

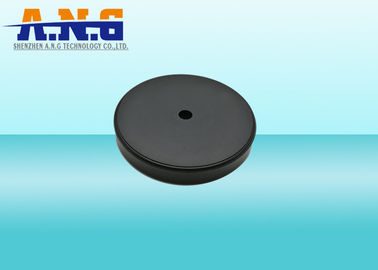

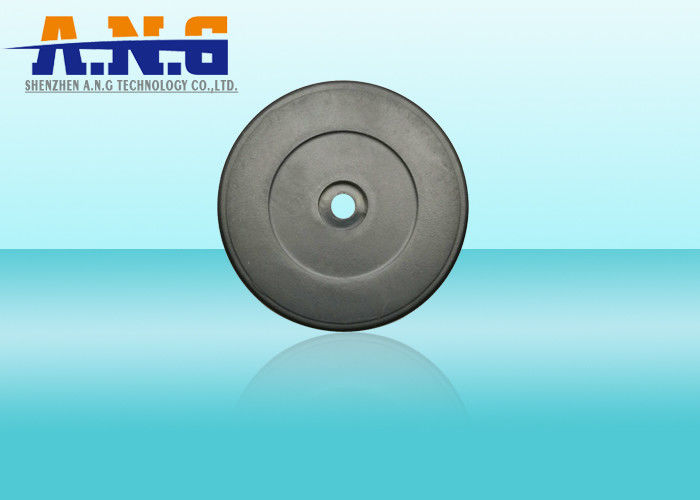

Custom Size ABS Passive Rfid Tags,Rfid Token Tag For Harsh Outdoor Environments
The ABS disc Token is one of passive, contactless, transponders designed for effective asset tagging. This tags is very solid, waterproof product resists crunching and chemical stresses very well. They are designed to be used in a wide range of applications offering a robust tag that can stand up to most normal workplace environments.
Heavy Duty RFID Tags aim to offer a solution for fishery applications, harsh outdoor environments and construction industry.
Hence everywhere where space of dia 52mm x 8X5mm is available, where conditions are rough and where read range is important.
Versions with metal shielding for LF, versions for HF applications as well as UHF versions are available.
Colours of the ABS or PC housing include a standard white, black ,beige or red (Custom colours depend on order volumes).
The RFID Token can be screen printed with customer specified details contact us for price and availability.
Specification:
| Diameter | 52mm |
| Hole | 4 mm |
| Working Frequency | 13.56mhz |
| Reading Range | Depending on the reader design |
| Material | PBT |
| Operating Temperature | -25 to 70 (Centigrade) |
| Storage Temperature | -25 to 130 C for 500 Hours
140 C for 100 Hours 160 C for 5 Hours |
| Assembly | PBT cup potted with epoxy resin |
| Protection Class | IP68 |
Main Application
1. E-ticket system
2. payment management
3. Access control system
4. Library managemnet
5. stock management
6. parking system
7. clothing management etc.
RFID ABS token:
If you are interested in this token tag, please welcome to send us an inquiry!
