| Place of Origin: | Made in China |
| Brand Name: | ANG |
| Certification: | CE,SGS,ISO,RoHs |
| Model Number: | AK-E110210 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | Depending on chip, material and printing |
| Packaging Details: | plastic bags with carton outer box |
| Delivery Time: | 2~15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1,000,000 pieces per month |
| Material: | Epoxy | Unit Weight: | 6g |
|---|---|---|---|
| Packing: | 100pcs/bag | Delivery Time: | 2~15 Days |
| Shipment: | By Air/Sea, By Express | Mode: | Read/Write |
| High Light: | rfid key cards,RFID Keychain Tag |
||

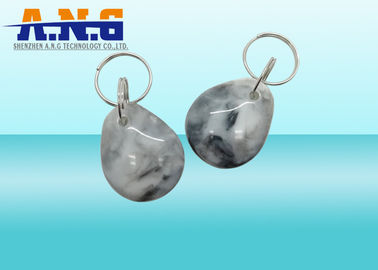

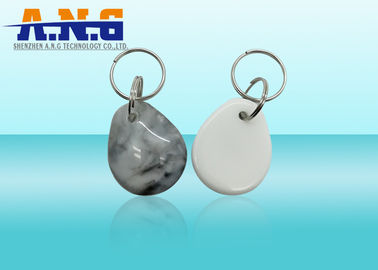

13.56MHz ISO15693 Programm Rfid Key Fob , rfid key chain Access Control
The RFID Key Fob is a small and robust contactless solution well suited for access control applications. Emdeded with RFID chips, the product can be appended to bunch of keys thus providing enhanced user convenience. Designed for daily use and made of ABS, it is characterized by surface hardness, waterproof and high impact resistance. The Key Fob can be easily adapted to client specific designs and manufactured in custom colors.
Access Control key fobs are electronic key fobs that are used for controlling access to buildings or vehicles. They are used for activating such things as remote keyless entry system on motor vehicles. Early electric key fobs operated using infrared and required a clear line of sight to function. These could be copied using a programmable remote control. More recent models use challege-response authentication over radio frequency, so these are harder to copy and do not need line-of-sight to operate. Programming these remotes sometimes requires the automotive dealership to connect a diagnostic tool, but many of them can be self-programmed by following a sequence of steps in the vehicle and usually requires at least one working key.
Key fobs are used in apartment building and condominuim buildings for controlling access to common areas (for example, lobby doors, storage areas, fitness room, pool). These usually contain a passive RFID tag. The fob operates in much the same manner as a proximity card to communicate (via a reader pad) with a central server for the building, which can be programmed to allow access only to those areas in which the tenant or owner is permitted to access, or only within certain time frames.
| Chip Type | TK4100, T5577, EM4200, EM4305,213, I-CODE SLI-X |
| Frequency | 125KHz, 13.56MHz |
| Power Supply Mode | Passive |
| Mode | Read/Write |
| Protocol | ISO14443A, ISO11784 |
| Feature | Waterproof |
| Operating Distance | Up to 10cm(depending on antenna geometry) |
| Standard | IP67, IP68 |
| Material | Epoxy |
| Surface | Matte/Glossy/Frosted |
| Temperature | (-20～55℃) |
| Weight | 6 Grams |
| Package | 200 or 250pcs/box, or on request |
Overview:
1. Operating Temperature: -20℃~+55℃
2. Material: ABS
3. International Standards: ISO14443A, ISO15693
4. Options: Logo print / Laser engraving / Embedded logo
Customized programming of data
Customized color and shape
5. Available IC Chips: 125KHz: TK4100, T5577, EM4200, EM4305
13.56MHz: S50, Ultralight(C), Ultralight EV1, 213, I-CODE SLI-X
6. Unit Weight: 5~7 Gram/Piece
7. Packing: 100 pieces/Bag
Applications:
If you are interested in this key fob, please welcome to send us an inquiry!
