Place of Origin: | Shenzhen, CHINA |
Brand Name: | A.N.G |
Certification: | CE,ISO,ROHS |
Model Number: | AT-SH152 |
Minimum Order Quantity: | 500pcs |
---|---|
Price: | Depending on the chip, material, printing |
Packaging Details: | 1000pcs / tie |
Delivery Time: | 7-15 days |
Payment Terms: | T/T,Paypal,Western Union, MoneyGram |
Supply Ability: | 5,000,000pcs per month |
Brand Name: | A.N.G | Item Type: | Paper Hf Rfid Tags Reusable |
---|---|---|---|
Protocol Standard: | ISO/IEC 15693 | Operation Frequency: | 13.56Mhz |
Dimension: | Customized | Endurance: | 10 Years |
Unit Weight:: | About 1g-3g | Antenna Material: | Aluminum Etching Antenna |
Reading Range: | About 1~5cm (vary From Different Reader And Environment) | HF Chip: | Slix 2 |
High Light: | radio frequency id tags,13.56 mhz rfid tags |

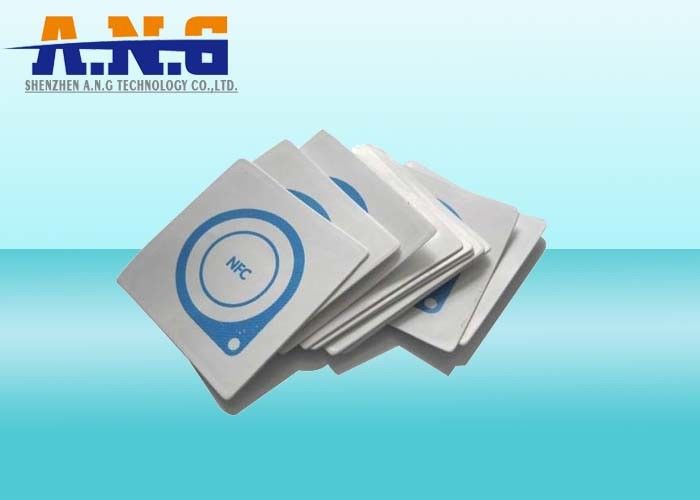

Writable Reading Paper Hf Rfid Tags Reusable I code Slix - X for Library
Physical Features: |
|||
Model | AT-SH152 | Name | HF/NFC Sticker Tag |
Material | PET/Paper | Dimensions | 50*50mm (Customizable) |
Working Temp | -20℃~+70℃ | Storage Temp | -40℃~+70℃ |
RFID Features: | |||
RFID Standard | ISO14443A/ISO15693 | ||
Chip Type | S50/FM1108/I CODE SLI/ 4k/213/215 (Optional) | ||
Frequency | 13.56MHz | ||
Memory | 512 bits/1K bits/ 4K bits | ||
Read Range | 1-10cm | ||
Other Features: | |||
Data Storage | > 10 years | ||
Re-write | 100,000 times | ||
Installation | Adhesive | ||
Customization | Company logo print, Encoding, Barcode,etc | ||
Application
|
|
SIX SENTENCE About RFID for LIBRARY
1. RFID tags replace both the EM security strips and Barcode
2. Simplify patron self check-out / check-in.
3 . Ability to handle material without exception for video and audio tapes.
4. Radio Frequency anti-theft detection is innovative and safe.
5. High-speed inventory and identify items which are out of proper order.
6. Long-term development guarantee when using Open Standard.
Advaes of RFID systems
Rapid check-out / check-in
The use of RFID reduces the amount of time required to perform circulation operations. The most significant time savings are attributable to the facts that information can be read from RFID tags much faster than from barcodes and that several items in a stack can be read at the same time. While initially unreliable, the anti-collision algorithm that allows an entire stack to be check-out or check in now appears to be working well.
The other time savings realized by circulation staff are modest unless the RFID tags replace both the EM security strips or RF tags of older theft detection systems and the barcodes of the library management system - i.e., the system is a comprehensive RFID system that combines RFID security and the tracking of materials throughout the library; or it is a hybrid system that uses EM for security and RFID for tracking, but handles both simultaneously with a single piece of equipment. There can be as much as a 50 percent increase in throughput. The time savings are less for check-out than for check-in because the time required for check-out usually is extended by social interaction with patrons.
Simplified patron self check-out / check-in
For patrons using self check out, there is a marked improvement because they do not have to carefully place materials within a designated template and they can check out several items at the same time.
Patron self check-in shifts that work from staff to patrons. Staff is relieved further when readers are installed in book-drops.
High reliability
1 The readers are highly reliable. RFID library systems claim an almost 100 percent detection rate using RFID tags.
2 There is no false alarm than with older technologies once an RFID system is properly tuned.
3 RFID systems encode the circulation status on the RFID tag. This is done by designating a bit as the "theft" (EAS) bit and turning it off at time of check-out and on at time of check-in. If the material that has not been properly check-out is taken past the exit sensors, an immediate alarm is triggered.
High-speed inventorying
A unique advae of RFID systems is their ability to scan books on the shelves without tipping them out or removing them. A hand-held inventory reader can be moved rapidly across a shelf of books to read all of the unique identification information. Using wireless technology, it is possible not only to update the inventory, but also to identify items which are out of proper order.
Automated materials handling
Another application of RFID technology is automated materials handling. This includes conveyer and sorting systems that can move library materials and sort them by category into separate bins or onto separate carts. This significantly reduces the amount of staff time required to ready materials for re-shelving.
Long tag life
Finally, RFID tags last longer than barcodes because nothing comes into contact with them.
If you are interested in this tag, please welcome to send us an inquiry!
