| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | A.N.G |
| Certification: | CE,ISO, SGS，ROHS |
| Model Number: | AK-S125 |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Depends on chips |
| Packaging Details: | 200pcs/bag,2000pcs/carton |
| Delivery Time: | 7-15 Days |
| Payment Terms: | T/T, Paypal,Western Union, MoneyGram |
| Supply Ability: | 1000,000pcs per month |
| Brand Name: | A.N.G | Item Type: | LF/HF Keyless Entry |
|---|---|---|---|
| Protocol Standard: | ISO14443A/B, ISO15693 | Operation Frequency: | 13.56MHZ、125khz |
| Dimension: | Customized | Material: | ABS,Plastic |
| Endurance: | About 10 Years | Feature: | Keyless Entry |
| Unit Weight:: | About 4g-16g | Color: | Yellow Blue Black Red Etc… |
| Chip: | TK4100、 EM4200、 T5577、FM11RF08、NTAG203 | ||
| High Light: | rfid key cards,RFID Keychain Tag |
||

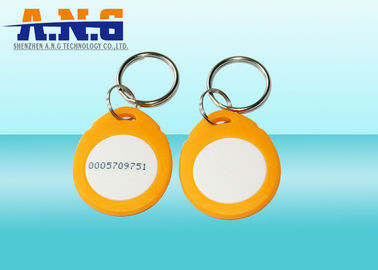

Low Frequency 125 khz / High Frequency 13.56 MHz waterproof key fob keyless entry
RFID key fob can be produced with different frequencies, LF or HF frequency. These two frequencies can be applied as access control for keyless entry. Mostly, they are used in door entrance of building, hotel, amusement park,etc.It functions as a key.
Low Frequency Integrated Circuits - 125 KHz RFID Keyfob
| EM4100 | 8byte(read only) |
| EM4102 | 8byte(read only) |
| EM4205 | 11784/85 512byte |
| EM4305 | 11784/85 512byte |
| 1 HT1 IC S30 | 256byte |
| 2 HT2 IC S20 | 11784/85 32byte |
| S HTS IC H32 11784/85 | 4byte(read only) |
High Frequency Integrated Circuits
| EM4034 | 15693 | 56byte | 13.56MHz |
| EM4135 | 15693 | 18000-3 288byte | 13.56MHz |
| 1K MF1 IC S50 | 14443A | 1024byte | 13.56MHz |
| 4K MF1 IC S70 | 14443A | 4096byte | 13.56MHz |
| I-Code 1 SL1 IC S30 | 15693 | 64byte | 13.56MHz |
| I-Code SL2 IC S20 | 15693 | 4096byte | 13.56MHz |
Specifications:
| 1. Model | Rfid Keyfob |
| 2. Material: | ABS |
| 3. Dimension: | 37x31x5mmor customized |
| 4. RF Protocol: | ISO14443A, ISO11784 |
| 5.OperatingFrequency | 125khz, 13.56Mhz |
| 6. ChipType | EM4200, 1K MF1 IC S50,etc |
| 7. Read Distance: | 3-5m,up to working environment and reader |
| 8. Break Strength: | F≥800N |
| 9. Available LF chips: | 125khz Chips: EM4102,EM4200,EM4550,T5577, 1, S etc |
| 10. Available crafts: | Logo printing, series number, barcode |
| 11. Operating Temperature | -40°C to 100°C |
| 12. Storage Temperature | -40°C to 180°C |
| 13. Data Retention | >3years |
| 14. Applications: | 1. Access management |
| 2. Tracking goods | |
| 3. Swimming pool | |
| 4. Toll collection and contactless payment | |
| 5. Concerts | |
| 6. Airport baggage tracking logistics | |
|
7. Events, Bars |
Description:
ABS, PVC, or Silicon material, more than 100 kinds of models for option.
Any color printing or keyfob color.
Different accessory matched with the chain.
General Tab, the only global UID number.
Tags with storage area can be written into the information.
Can be made self-adhesive labels, tags or other materials.
Passive type, with no battery. The memory area is re-writable for more than 100,000 times. The useful life can be 10 years above, so it’s very cost-effective.
Applications:
1. Access management
2. Tracking goods
3. Swimming pool
4. Toll collection and contactless payment
5. Concerts
6. Airport baggage tracking logistics
7. Events, Bars
8. Access control, Metro, Swimming pool, etc.
Competitive Advantage:
1. High Quality Control ----We have strict QC system, Twice QC lines arranged before delivery.
2. High Reputation ---- Our clients include many World Brand Companies.
3. Responsible Sales ----We care what you have concerned.
4. All-around ON TIME service ---- We work late to meet your urgent needs.
5. Competitive Price----OEM supplier offering direct Factory price.
6. On Time Deliver ---- Powerful production capability ensure shortest deliver schedule.
7. Strong epoxy ---- beautiful and strong
If you are interested in this keyfob, please welcome to send us an inquiry!
