Place of Origin: | Shenzhen, CHINA |
Brand Name: | A.N.G |
Certification: | CE,ISO, SGS |
Model Number: | AT-S111 |
Minimum Order Quantity: | 500pcs |
---|---|
Price: | Depending on the chip, material, printing |
Packaging Details: | 100pcs / tie |
Delivery Time: | 2-15 Days |
Payment Terms: | T/T, Paypal,Western Union, MoneyGram |
Supply Ability: | 1000,000pcs per month |
Item Type: | RFID CD Tag | Operation Frequency: | 13.56Mhz |
---|---|---|---|
Dimension: | 45mm*16mm*0.25mm | Material: | Paper/PVC |
Endurance: | 10 Years | Feature: | Contactless |
Unit Weight:: | 0.5g | Antenna Material: | Aluminum Etch About 1~3cm (vary From Different Reader And Environment)ing Antenna |
Highlight: | Contactless rfid tag,tamper proof rfid tags |

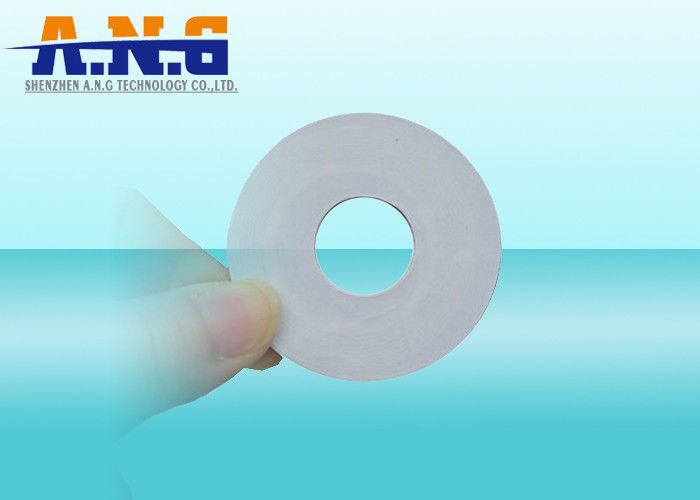

High Frequency Contactless Rfid DVD Tags Mini 0.5g For Asset Management
RFID CD Tag is specially designed tag antenna and package, making it easy for disk management, statistics, identification, security and many other applications. Excellent anti-jamming performance, interference in the work of the label of intensive RF environment data read and write performance is still stable and reliable.
Description:
1. Chip: Fudan, Alien, implinj
2. Frequency: 13.56MHZ, 860-960MHZ
3. User memory :128 / 512 / 1536 / 1k bit,320 / 1k/ 2k/ 4k/ 8k byte
4. Protocol Standard: ISO 14443A, ISO 18000-6C
5. Read/Write Endurance: 100,000 times
6. Operating Temperature :-20°C to + 55°C
Chip |
Memory (bytes) |
User Memory (bytes) |
URL characters | Best Use |
203 | 168 | 144 | 132 | Established all-round NFC chip. Cost-effective with good memory capacity. |
210 | 80 | 48 | 41 | Cheap, general NFC use with short URLs. Limited availability |
213 | 180 | 144 | 132 | Popular, Next generation chip, will eventually replace 203. Great ScanStrength. |
215 | 540 | 504 | 492 | The 'one in the middle'. Good memory but limited availability compared to the 216. |
216 | 924 | 888 | 854 | Large memory and full feature set. Higher price makes it suitable for Card and larger memory use only. |
4k | 4K | 4094 | 2000 | Specialist applications requiring strong data encryption only. |
Topaz 512 | 512 | 454 | 449 | Universally compatible chip available in only a limited number of products. Useful for Cards or small data storage. |
Product feature:
Material: Paper, PVC
Dimension: 45mm*16mm*0.25mm
Color: CMYK print etc.
Depends on requirement
Applications:
Packaging:
1. 5000pcs or 10000pcs per Roll /carton
2.Carton Size:42*42*10cm
3. Or could be customize based on customers request
If you are interested in this DVD tag, please welcome to send us an inquiry!
