| Place of Origin: | Shen Zhen, CHINA |
| Brand Name: | A.N.G |
| Certification: | CE,ISO, SGS，ROHS |
| Model Number: | AK-S117 |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Depends on chips |
| Packaging Details: | 200pcs/bag,2000pcs/carton |
| Delivery Time: | 7-15 Days |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram |
| Supply Ability: | 1000,000pcs per month |
| Brand Name: | A.N.G | Item Type: | RFID Key Tags（KeyFob） |
|---|---|---|---|
| Protocol Standard: | ISO11786,ISO14443A,ISO15693 | Operation Frequency: | 125KHz,13.56MHz |
| Dimension: | 39*25*5.3mm Or Customized | Material: | ABS |
| Endurance: | About 10 Years | Feature: | Contactless |
| Unit Weight:: | About 5g | Color: | Yellow Blue Black Red Etc… |
| Chip: | TK4100, EM4200, T5577, H3, Monza 4, I-CODE-2, Ultralight, Etc. | Custom Made: | Yes |
| High Light: | rfid key tag,rfid key cards |
||

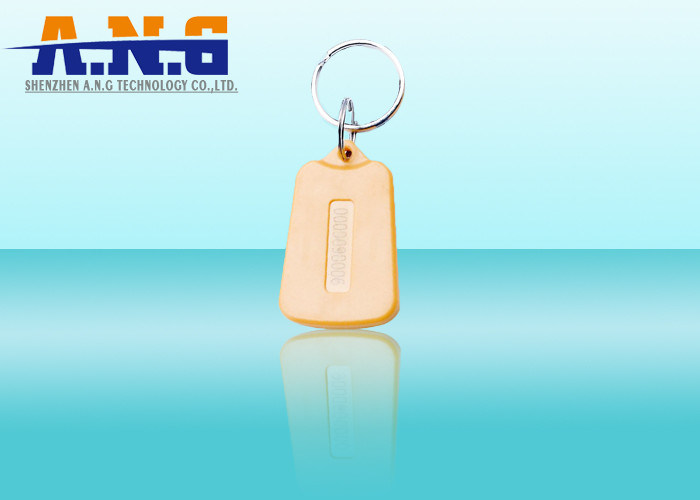

Customized Tracking Plastic Rfid Key Fob Contactless With Various Shapes
The RFID Key Tags is made of refined mold, advanced high temperature anti-corrosion material injection pressure, internal LF,HF,UHF chip package, by filling an epoxy resin, a combination of ultrasonic welding, can be waterproof, easy to carry features.
Description:
1. Chip:TK4100, EM4200, T5577, H3, Monza 4, I-CODE-2, Ultralight, etc.
2. Protocol Standard: ISO11786,ISO14443A,ISO15693
3. Read/Write Endurance: 100,000 times
4. Operating Temperature :-20°C to + 70°C
|
Model |
AK-S117 |
|
Dimension |
37*30*8.2mm+/-0.03mm |
|
Chip types options |
TK4100, EM4200, T5577, H3, Monza 4, I-CODE-2, Ultralight, etc. |
|
Feature |
Durable, waterproof, anti-shock |
|
Reading range: About 2cm |
|
|
Data storage: 10 years |
|
|
Working temperature: -20℃~70℃ |
|
|
Housing material |
ABS |
|
Housing material |
Blue, black, yellow , red ,white, green, red , purple etc. |
|
Application |
Access Control & Security, Time Attendance, Loyalty & Membership Management, Ticket & Payment, Club/SPA membership management, Rewards and promotion etc. |
Chip parameters:
|
Chip |
Memory (bytes) |
User Memory (bytes) |
URL characters |
Best Use |
|
Ultralight |
64 |
48 |
41 |
Cost effective chip for short URLs in products (wristbands, keyfobs, etc). |
|
203 |
168 |
144 |
132 |
Popular, established all-round NFC chip. Cost-effective with good memory capacity. |
|
210 |
80 |
48 |
41 |
Cheap, general NFC use with short URLs. Limited availability |
|
213 |
180 |
144 |
132 |
Next generation chip, will eventually replace 203. Great ScanStrength. |
|
215 |
540 |
504 |
492 |
The 'one in the middle'. Good memory but limited availability compared to the 216. |
|
216 |
924 |
888 |
854 |
Large memory and full feature set. Higher price makes it suitable for vCard and larger memory use only. |
|
Ultralight C |
192 |
148 |
132 |
Specialist applications requiring encryption only. Poor scan distance with mobile phones. |
|
MF 1k |
1024 |
716 |
710 |
Legacy applications only. Not recommended for general mobile phone NFC usage. |
|
4k |
4K |
4094 |
2000 |
Specialist applications requiring strong data encryption only. |
|
Topaz 512 |
512 |
454 |
449 |
Universally compatible chip available in only a limited number of products. Useful for vCards or small data storage. |
Product feature:
Material: ABS
Unit weight: about 5 g
Dimension: 39*25*5.3mm or Customized
Color: Blue, black, yellow, red, white, green, etc.
Depends on requirement
Applications:
1. Access Control & Security
2. Time Attendance
3. Loyalty & Membership Management
4. Ticket & Payment
5. Club/SPA membership management
6. Rewards and promotion
Size:
Packing:
100pcs/opp bag,1000pcs/box
Select Packaging according to purchase quantity.
Production Process:
If you are interested in this key fob, please welcome to send us an inquiry!
