| Place of Origin: | China |
| Brand Name: | ACS |
| Certification: | CE, Rohs, ISO |
| Model Number: | ACR122U |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | depends on quantity |
| Packaging Details: | 1pc per box |
| Delivery Time: | 2~5 days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100,000pcs per month |
| Color: | White | Frequency: | 13.56Mhz |
|---|---|---|---|
| Procotol: | ISO14443 | Read Distance: | 1~10cm |
| Read & Write: | Yes |

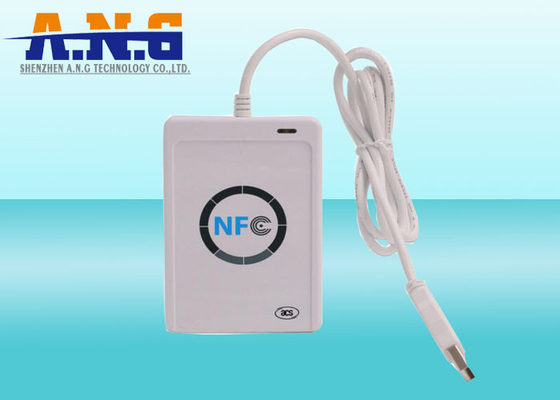

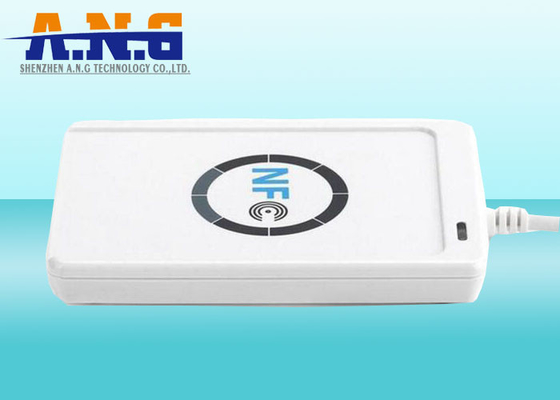

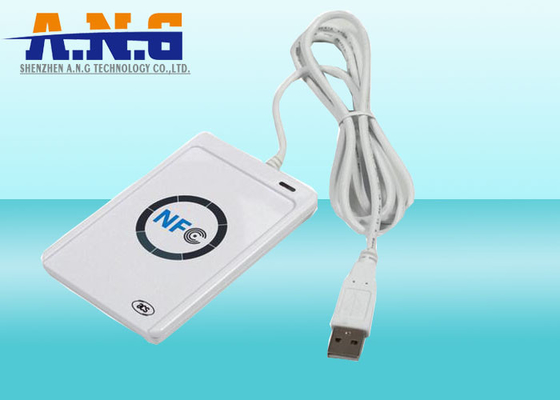

High Quality Portable USB NFC Reader Writer 13.56Mhz RFID Encoder
ACR-122U RFID reader is able to read an automatic identification equipment electronic tag data. Radio Frequency Identification RFID is a non-contact automatic identification technology, automatic target recognition and access to relevant data RF signal, to identify work without human intervention, can work in harsh environments. RFID technology can identify fast moving objects and can also identify multiple tags, the operation convenient.
Description:
1. ISO 18092, ISO 14443, PC/SC, CCID, EN60950/ISO 60950, CE, FCC, KC, VCCI, ROHS 2, USB Full Speed
2. Microsoft WHQL: 2000, XP, Vista, 7, 8, Server 2003, Server 2008, Server 2008 R2, Server 2012
| Dimensions | 98 (L) x 65 (W) x 12.8 (H) mm |
| Weight | 70 grams |
| Interface | USB Full Speed |
| Operating Distance | <= 50 mm |
| Supply Voltage | Regulated 5V DC |
| Supply Current | 200mA (operating); 50mA (standby); 100mA (normal) |
| Operating Temperature | 0°C - 50°C |
| Operating Frequency | 13.56 MHz |
| Compliance/Certifications | ISO14443 1-4, CE, FCC, RoHS Compliant |
| Operating System Support | Win 8, Win7, Windows 2000, XP, 2003, Vista |
| Windows XP x64, 2003 x64, Vista x64 | |
| Windows CE 5.0 | |
| Linux | |
| Mac | |
| Android 3.0/4.0 (tablets must have CCID driver) |
Product feature:
Size: 98mm × 65mm × 12.8mm
Unit Weight: 70g
Supports: ISO14443 Type A & B, NFC (ISO/IEC18092)
Interface : USB Full Speed
Operating Distance: Up to 50 mm (depends on the tag type)
Supply Voltage: Regulated 5V DC
Supply Current: 200mA (operating); 50mA (standby); 100mA (normal)
Operating Temperature:0-50 °C
Operating Frequency: 13.56 MHz
Read/write speed up to 424 kbps
Applications:
