    Product Details:

    Place of Origin: Shenzhen, CHINA
    Brand Name: A.N.G
    Certification: CE,ISO,ROHS
    Model Number: AT-SH155

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: Depending on the chip, material, printing
    Packaging Details: 1000pcs / tie
    Delivery Time: 7-15 days
    Payment Terms: T/T,Paypal,Western Union, MoneyGram
    Supply Ability: 5,000,000pcs per month
    Contact Now
    Detailed Product Description
    Key Words: Ntag216 Stickers,NFC Tags,rfid Lable Size: 86*54MM
    Chip Type: Ntag216 Total Memory: 888 Bytes
    Available NDEF Message Size: 879 Bytes NFC Forum Type: Type 2
    Material: Glossy Paper

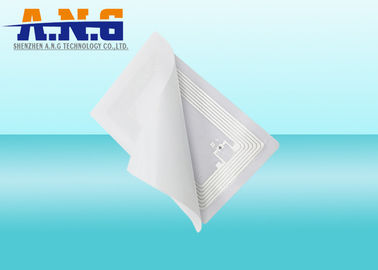

    HF RFID TAGS / NTAG216 86*54MM rectangle White Film Face Stickers



      The NFC Tag is at the heart of any Contactless system. Small, inexpensive and portable, tags consist of a tiny chip and antenna, usually embedded within a sticker, poster or other product. NFC tags store data, transmitting it to a Contactless reader when in close proximity. The clever thing about NFC tags is that they don’t need batteries and never need to be recharged – they generate all the power they need from the Contactless transmission process itself.



      NFC Tags can store data such as web addresses, product IDs and business card information. The main factors likely to influence your choice of tag are memory capacity and transmission strength.



      NTAG216 86*54MM rectangle White Film Face Stickers. A great way to use NFC. Work well for Smart Posters and general NFC uses.



      Stickers are supplied either individually, as folded strip or on a reel depending on quantity ordered.

    This Tag is a popular choice with our customers and we offer Unique ID Print and Unique Encoding if required.


    Product Description


    Physical Features:

    Material PVC Dimensions 86*54MM
    Working Temperature -20°C-75°C Storage Temperature -40°C-85°C
    NFC Features:
    Standard ISO/IEC 14443A
    Chip Type Ntag216
    Memory 888 Bytes
    Frequency 13.56MHz Read Range 1-5cm(depends on the reader or phone model)
    Other Features:
    Data Storage > 10 years
    Re-write 100,000 times
    Installation Adhesive
    Customization Printing,URL encoding, Serial numbers,Web links, Designing,etc
    Application Access control,Payments,Information collection and exchange ,Custom setting,
    WIFI, Alarm, Business card,etc.

    Specifications:

    Chip type: NXP NTAG 216
    Capacity: 888 Bytes
    Operating frequency: 13.56MHz
    Memory size: 888bytes
    Read range: 0-50mm / 0-2.0in
    Material: PVC + Epoxy
    Operating temperature: -40 to +65 degrees Celsius
    Read/write times: 100,000 times
    Quantity: 100pcs
    Tag size: 86*54mm, or customed.

    Features:

    • Contactless transmission of data and supply energy
    • Operating frequency of 13.56 MHz
    • Data transfer of 106 kbit/s
    • Data integrity of 16-bit CRC, parity, bit coding, bit counting
    • Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)
    • 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
    • UID ASCII mirror for automatic serialization of NDEF messages
    • Automatic NFC counter triggered at read command
    • NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
    • ECC based originality signature
    • Fast read command
    • True anticollision
    • 50 pF input capacitance
    NTAG216 EEPROM: 924 bytes, organized in 231 pages of 4 byte per page.



    –26 bytes reserved for manufacturer and configuration data
    –37 bits used for the read-only locking mechanism
    –4 bytes available as capability container
    –888 bytes user programmable read/write memory

    Target Applications

    • Smart advertisement
    • Goods and device authentication
    • Call request
    • SMS
    • Call to action
    • Voucher and coupons
    • Bluetooth or Wi-Fi pairing
    • Connection handover
    • Product authentication
    • Mobile companion tags
    • Electronic shelf labels
    • Business cards



    Size:



    PVC HF RFID TAGS / NTAG216 86*54MM rectangle White Film Face Stickers



    PVC HF RFID TAGS / NTAG216 86*54MM rectangle White Film Face Stickers
