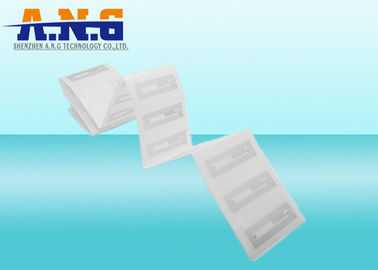

13.56MHz PET Layer RFID Wet Inlay Tag HF Antenna Sticker Label MF S50 Chip

13.56MHz PET Layer RFID Wet Inlay Tag HF Antenna Sticker Label MF S50 Chip

    • 13.56MHz PET Layer RFID Wet Inlay Tag HF Antenna Sticker Label MF S50 Chip
    • 13.56MHz PET Layer RFID Wet Inlay Tag HF Antenna Sticker Label MF S50 Chip
    • 13.56MHz PET Layer RFID Wet Inlay Tag HF Antenna Sticker Label MF S50 Chip
  • 13.56MHz PET Layer RFID Wet Inlay Tag HF Antenna Sticker Label MF S50 Chip

    Product Details:

    Place of Origin: Made in China
    Brand Name: ANG
    Certification: CE,ISO,SGS,RoHs
    Model Number: AI-P121301

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 pieces
    Price: Depending on chip type
    Packaging Details: 100pcs/roll, 20rolls/box, 200pcs/box
    Delivery Time: 2~15 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 100,000 pieces per month
    Contact Now
    Detailed Product Description
    Material: PET Size: 56*18mm
    Chip: MF S50 Frequency: 13.56MHz
    Reading Range: 1~10cm Package: 100 Pieces Per Roll



    13.56MHz PET Layer RFID Wet Inlay Tag HF Antenna Sticker Label MF S50 Chip



        RFID inlays are composed of an IC (Integrated Circuit, Chip) and a Dipole antenna.  Wet inlays are inlays that have an adhesive backing with a clear or colored topsurface of PVC,PET or paper, the PVC or PET wet inlays are commonly used to make "RFID Labels" where the inlay is placed on the back of the label with the adhesive side away from the label side so that the label has continuous adhesive. Placement of the wet inlay on the label is very specific to each RFID printer in order to be programmed correctly by the printer and also to minimize the risk of damaging the RFID inlay while in the printer.

        Antennas can be made of silver, aluminum or copper, with each material producing very specific read and write characteristics because of the different chemical properties. While there are some more exotic materials sometimes used for antennas they are considerably more expensive to produce and very vertical application specific. Generally a copper antenna is slightly more expensive that aluminum or silver but is more conductive and usually provides a longer distance read capability.

        Just as there is a very wide variety of IC's for inlays, there is also a very wide variety of antennas ranging from very small - Dot, Button, Paperclips through DogBone, Hammer, Crab, Radar, Satillite, Squiggle, Mini Squiggle, Torpedo, Xcaliber, Web and Frog sizes - each inlay usually has a specific name to identify it.

         Size and shape of the antenna determines the read and write distance and speed characteristics.

         Most inlays are designed for a specific application use - a single inlay can not and will not work for multiple types of RFID requirements. Inlays that work near or on metal do not work as well on wood or plastic.



    Parameters:

    • Air Interface Protocol: ISO14443A
    • Operating Frequency: Global 13.56MHz
    • IC Type: MF S50
    • Memory: 1K Byte
    • EPC Memory Content: Not guaranteed unique
    • Max Read Distance: > 0.1 m
    • Applicable Surface Materials: Plastic, cardboard, glass
    • Tag Form Factor: Wet inlay
    • Tag Materials: PET
    • Recommended Ribbon: Full Resin
    • Attachment Method: Acryllic, water borne adhesive
    • Dimensions: 56*18mm
    • Weight: 1 g
    • Operating Temperature: -40° to +85°C
    Frequency HF 13.56MHz
    Standard HF: ISO14443A
    RFID Chip MF 1K
    Material PET (substrate), Aluminum (antenna)
    Bonding Flip-chip technology
    Dimensions 56*18mm
    Reading Dist. 1~10cm (depending on the reader or antenna design)
    Operating Temp. -25~60°C
    Storage Temp. -40~70°C
    Write Endurance 100,000
    Data Storage 10 years
    Applications Semi-finished product for RFID adhesive label, Access control, Ticket, Logistics and Supply chain,etc.
    Sample Free samples available upon request
    Package 100 pieces per roll, 20 rolls per box, 2000 pieces per box



    Features:

    · High end product for global supply chain management, industrial and logistic applications.

    · Excellent performance even on difficult-to-tag materials.

    · Optimum size product for 18 milimeter wide converted labels.

    · Possibility for different memory options: user memory 1K byte

    · Serialized TID.





    Package:



    Details of PET Layer
    PET Layer Size 56*18mm
    Antenna Size 52*15mm
    Net Weight 0.32KG/Roll
    Package 100pcs/Roll
      20Rolls/Box
      2000pcs/Box
    Carton Size 44.5*44.5*25.5mm



    13.56MHz PET Layer RFID Wet Inlay Tag HF Antenna Sticker Label MF S50 Chip



    If you are interested in this sticker label, please welcome to send us an inquiry!
