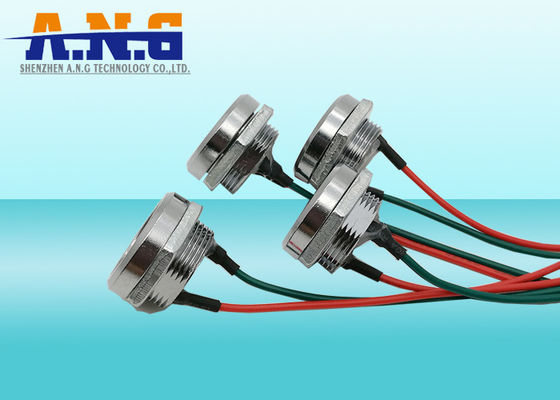

Access Control Stainless Steel iButton one Wire Key Probe Reader

Access Control Stainless Steel iButton one Wire Key Probe Reader

    • Access Control Stainless Steel iButton one Wire Key Probe Reader
    • Access Control Stainless Steel iButton one Wire Key Probe Reader
    • Access Control Stainless Steel iButton one Wire Key Probe Reader
  • Access Control Stainless Steel iButton one Wire Key Probe Reader

    Product Details:

    Place of Origin: Made in China
    Brand Name: ANG
    Certification: CE,ISO,SGS,RoHs
    Model Number: AR-S12144

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: Depending on type and quantity
    Packaging Details: plastic bags with carton outer box
    Delivery Time: 2~15 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 100,000 pieces per month
    Contact Now
    Detailed Product Description
    Material: Durable Stainless Steel Feature: Two Wire
    Remark: Without LED Light Samples: Available
    Size: 13*24mm Application: Access Control
    High Light:

    ibutton ring

    ,

    ibutton writer

    Access Control Stainless Steel iButton one Wire Key Probe Reader



       The iButton Reader is a simple and easy to use desktop interface to communicate with the DALLAS family of iButtons from a PC. The Reader is available with USB connectors. The USB version comes complete with drivers which enumerates the Reader as a standard COM port. The reader is fully USB 2.0 compliant, and allows the use of standard DALLAS iButton drivers to be used, as well as easy migration of existing software applications to USB, with no software changes. The reader is available with a standard Touch socket, for momentary touch, or the Touch & Hold socket, that latches the iButton to the reader, until removed.



       When the key is put to the iButton reader, a signal is sent. If it is a magnetic key (iButton), it is then held in place by the reader. The iButton reader can be connected to a 1-Wire device. Only 1 iButton reader can be used per Extension, but limitless iButtons can be used. The iButton Reader is Water resistant, but not recommended for use in extreme environments, since the materials are not corrosion-resistant enough over long periods of time.



    Technical Details



    · Signal transmission based on iButton technology

    · Robust housing

    · Temperature range: -40 ° C to 85 ° C

    · Water resistant (but not recommended for use in tougher environments, since it is not corrosion resistant in the long run)

    · Depth for mounting: 10mm

    · Cut-out diameter: 20mm

    · Inline resistors for direct connection on 24V (no extra resistors or extra power supply is needed)

    · Connecting directions is now listed on the product.



    Name iButton Probe
    Communication protocol 1-wire
    Operating Voltage Range 2.8V to 6.0V
    Working Temperature Range -40 to +85 degree
    Dimension 24*12mm
    Advantage Water proof,heat-resistant,dust-resistant



    Information Getting Into and Out of the iButton Device:



       Information is transferred between your iButton device and a PC with a momentary contact at up to 142kbps. You simply touch your iButton device to an iButton probe, which is connected to a PC. The iButton reader is cabled to a 1-Wire adapter that is attached to a spare PC port. 1-Wire adapters exist for USB, serial, and parallel ports. The iButton reader and 1-Wire adapter are inexpensive.

       The iButton device is also the ultimate information carrier for AutoID and many portable applications. All the latest handheld computers and PDAs can communicate with iButton devices. For a full listing of all portable devices that communicate with iButton devices, go to the iButton Solutions Search.



    Access Control Stainless Steel iButton one Wire Key Probe Reader



    If you are interested in this ibutton, please welcome to send us an inquiry!
