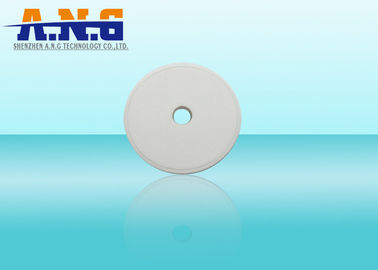

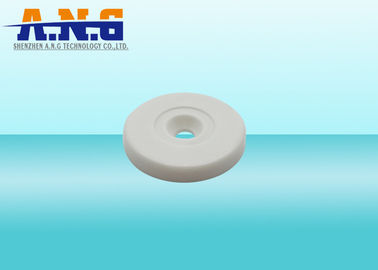

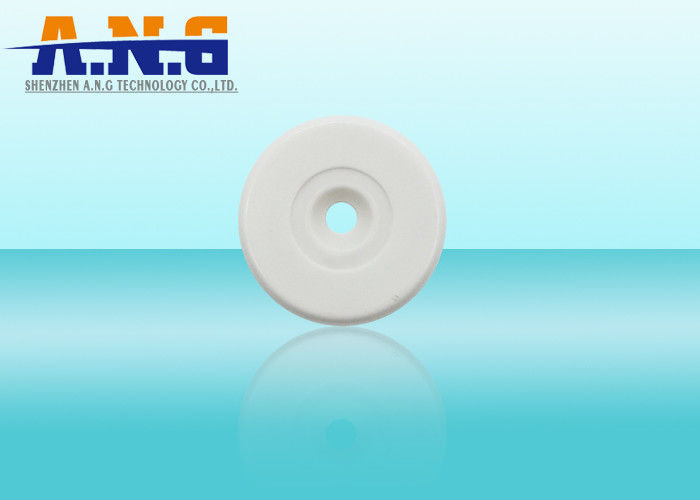

TK4100 ABS White Round RFID Smart Key Tag For Patrol Guard Tour System

TK4100 ABS White Round RFID Smart Key Tag For Patrol Guard Tour System

    • TK4100 ABS White Round RFID Smart Key Tag For Patrol Guard Tour System
    • TK4100 ABS White Round RFID Smart Key Tag For Patrol Guard Tour System
    • TK4100 ABS White Round RFID Smart Key Tag For Patrol Guard Tour System
  • TK4100 ABS White Round RFID Smart Key Tag For Patrol Guard Tour System

    Product Details:

    Place of Origin: Made in China
    Brand Name: ANG
    Certification: CE,SGS,ISO,RoHs
    Model Number: AP-A11021

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: Depending on chip, material and printing
    Packaging Details: plastic bags wuth carton outer box
    Delivery Time: 2~15 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 1,000,000 pieces per month
    Contact Now
    Detailed Product Description
    Material: ABS Diameter: 30mm
    Hole Size: 5mm Thickness: 4mm
    Chip: TK4100 Frequency: 125KHz
    Applications: Patrol, Identificate Packages And Vehicles



    TK4100 ABS White Round RFID Smart Key Tag For Patrol Guard Tour System



    Specification:



    1. ABS RFID Coin Tag Patrol Guard Tour Tag

    2. Material: ABS

    3. Chip:TK4100/EM4100/EM4305/T5577 etc

    4. Available chip :S50/UL/F1108/ICODE2.etc

    5. Frequency:125khz,13.56MHz,915MHz

    6. Memory: 96bit/512bit/1K bit/1K byte

    7. Read-Write Times: 100000

    8. Working Temperature: -20 to 70 degrees

    9. Read-Write Distance: More Than 3cm

    10. Protocol: ISO 14443A/15693

    11. Application: Entrance Guard, Stuff Administration, Cell Phone Tag, Phone Payment, Electronic Purse





    Keyword Name RFID Patrol Tag
    Packaging Meterial PVC,PET
    Size 20mm,25mm,30mm or customized
    IP Rating Waterproof
    Operating temperature (-20 to +60) degrees Celsius
    Storage temperature (-20 to +65) degrees Celsius
    Power Supply Mode Passive
    Reading range depending on RFID technology and reader design
    Surface Treatment Do Glossy,Matte,Frosted and other processes
    Available crafts 4 color offset printing, magnetic stripe, embossing number, signature panel, photo, barcode, hot-stamping in gold or silver, scratch-off panel, serial number punch, hole punched, UV printing, ect.





    How it works:



    1. The patrolling guard takes the reader and read his own Guard ID to identify himself with the system



    2. Then the guards go to the checkpoints, the reader will automatically read each checkpoints and no need touch it. When reading successfully, a green led flash accompanied by a vibration means that a reading has been made. The GS-V5 reader will store the ID number and time for every checkpoint reading.



    3. After patrolling tour is done, the guard connects the reader to the computer and download the tour to get a data analysis, reporting and management. The reader can store up to 60,000 records so it is not necessary to download then daily you can download weekly or monthly depends on your requirement. Once the data is downloaded from the reader to the PC it will erase from the reader automatically but will always be there on the PC so you can do back date and can look up old reports or activity.


    TK4100 ABS White Round RFID Smart Key Tag For Patrol Guard Tour System



    If you are interested in this tag, please welcome to send us an inquiry!
