860-960Mhz Programmable Passive Rfid Tags,RFID Nail Tag For Tree / Wood Tracking

860-960Mhz Programmable Passive Rfid Tags,RFID Nail Tag For Tree / Wood Tracking

    • 860-960Mhz Programmable Passive Rfid Tags,RFID Nail Tag For Tree / Wood Tracking
    • 860-960Mhz Programmable Passive Rfid Tags,RFID Nail Tag For Tree / Wood Tracking
    • 860-960Mhz Programmable Passive Rfid Tags,RFID Nail Tag For Tree / Wood Tracking
    • 860-960Mhz Programmable Passive Rfid Tags,RFID Nail Tag For Tree / Wood Tracking
  • 860-960Mhz Programmable Passive Rfid Tags,RFID Nail Tag For Tree / Wood Tracking

    Product Details:

    Place of Origin: Made in China
    Brand Name: ANG
    Certification: CE, RoHs,SGS,ISO
    Model Number: AP-P1103

    Payment & Shipping Terms:

    Minimum Order Quantity: 1,000 pieces
    Price: Depending on chip, material and printing
    Packaging Details: plastic bags with carton outer box
    Delivery Time: 2~15 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 1,000,000 pieces per month
    Contact Now
    Detailed Product Description
    Material: PPS Color: White
    Thickness: 6mm Samples: 3pcs Free For Testing
    Applications: Wood Management Frequency: 860~960MHz
    Length: 41mm

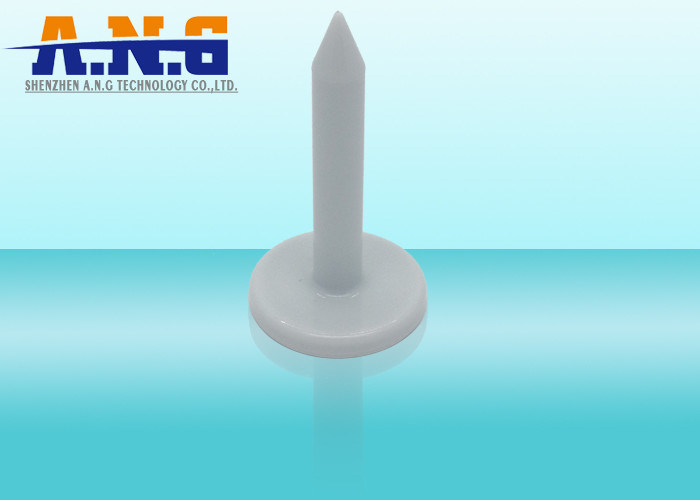

    860-960Mhz Programmable Passive Rfid Tags , RFID Nail Tag For Tree / Wood Tracking



         Nail tag has a good performance in waterproof and resistance of aggressive chemicals. And it can be reader any direction, workers can make a greatly improve in working efficiency. Easy to install is an another important character for nail tag. The tags can be installed as long as there is a narrow space. For example, people just need to make a small hole in the wood, then insert nail tag with a rubber plastic hammer.



         UHF follows the EPCglobal Gen2 standard and uses the 860—960Mhz frequency band to provide fast data transfer rates and much longer read ranges (up to 10m) compared to either LF or HF cards. UHF labels and tags are used extensively in warehouse and goods tracking while UHF cards are popular for location and attendance tracking applications. UHF is negatively affected by materials in the environment such as metals and liquids, but is the best choice for applications that require a long read range and simultaneous reading of a large number of tags. Common UHF chips offered by Cardzgroup include:

    Alien Higgs 3: EPC Class1 Gen2 chip with 96—480bit EPC memory, 512bit user memory and 64bit UTID with memory read protection.

    Alien Higgs 4: EPC Class1 Gen2 chip with 128bit EPC memory, 128bit user memory and 64bit UTID with memory read protection and pre-encoded with unalterable enterprise-wide serialization scheme.

    Impinj Monza 4D: EPC Class1 Gen2 chip with 128bit EPC memory, 32bit user memory and 96bit UTID with support for omni-directional antennas.

    Impinj Monza 4E: EPC Class1 Gen2 chip with up to 496bit EPC memory, 128bit user memory and 96bit serialized TID with support for omni-directional antennas.

    Impinj Monza 4QT: EPC Class1 Gen2 chip with 128bit EPC memory, 512bit user memory and 96bit serialized TID with support for omni-directional antennas and ability to create a separate public and private (password protected) data profile on the same chip.

    Impinj Monza 5: EPC Class1 Gen2 chip with up to 128bit EPC memory, 32bit user memory and 48bit serialized TID.



    Feature


    1. Chip:Alien H3
    2. Frequency: 860~960MHz
    3. Protocol: ISO18000-6C
    4. Memory: 512bits
    5. Read/write Times: 100,000 times
    6. Data Storage: 10 years
    7. Diameter :22mm.or OEM

    8. Length: 41mm or OEM
    9. Thickness: 6mm
    10. Material: ABS
    11. Antenna: Aluminium Foil
    12. Read Distance: 1-15cm (depends on the card reader and antenna)
    13. Working temperature: -40 °C~ 85 °C
    14. Store temperature: -20 °C ~45 °C



    Antenna material ABS+PCB+HB
    Round size Φ22mm or OEM
    Length size 41mm or OEM
    Thickness 6 mm
    Chip Alien H3
    Operating distance up to 15 cm
    Memory 512 bits
    Chip Options Alien H3
    Crafts Available Logo Printing, QR Code, Barcode, etc





    Application

    -Access control: hotel door lock card, community management;
    -Library management, inventory management, warehouse management;
    -Transportation;
    -Forest Management
    -Tree Tracking



    860-960Mhz Programmable Passive Rfid Tags,RFID Nail Tag For Tree / Wood Tracking

    860-960Mhz Programmable Passive Rfid Tags,RFID Nail Tag For Tree / Wood Tracking



    If you are interested in this tag, please welcome to send us an inquiry!
