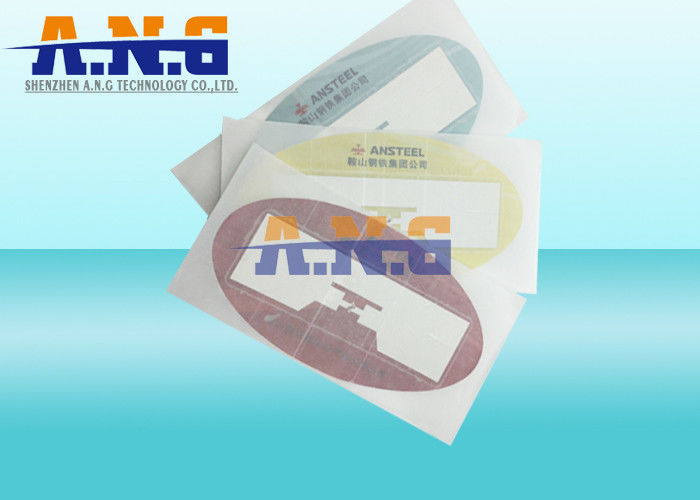

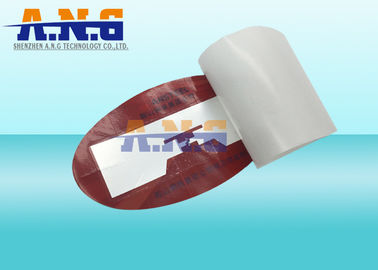

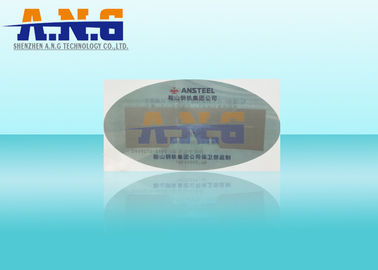

EPC Uhf Gen 2 Rfid Alien H3 Vehicle Parking Windshield Label For Access

EPC Uhf Gen 2 Rfid Alien H3 Vehicle Parking Windshield Label For Access

    • EPC Uhf Gen 2 Rfid Alien H3 Vehicle Parking Windshield Label For Access
    • EPC Uhf Gen 2 Rfid Alien H3 Vehicle Parking Windshield Label For Access
    • EPC Uhf Gen 2 Rfid Alien H3 Vehicle Parking Windshield Label For Access
  • EPC Uhf Gen 2 Rfid Alien H3 Vehicle Parking Windshield Label For Access

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: A.N.G
    Certification: CE,ISO, SGS
    Model Number: AT-SH131

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Depending on the chip, material, printing
    Packaging Details: 100pcs/opp bag
    Delivery Time: 2-15 Days
    Payment Terms: T/T ,Paypal ,Western Union, MoneyGram
    Supply Ability: 1000,000pcs per month
    Detailed Product Description
    Brand Name: A.N.G Item Type: 10m Read Distance UHF Tags
    Protocol Standard: ISO 18000-6C Operation Frequency: 860-960MHZ
    Dimension: 72*19 Mm Chip: Higgs-3
    Endurance: 10 Years Material: Paper,PVC
    Unit Weight:: About 1 G Reading Range: About1m-5m (vary From Different Reader And Environment)
    Color Available Crafts: Four Color Offset Printing, Digital Number Printing



    EPC Uhf Gen 2 Rfid Alien H3 Vehicle Parking Windshield Label For Access

          EPC GEN 2 UHF windshiled tag/label is a passive UHF transponder offering long range identification up to 5 meters

         The UHF Windshield Tag offers cost effective long range vehicle identification for parking applications.


         Typical applications include vehicle access to car parks, business parks, gated communities, condominiums, campuses, airports, etc.

    EPC Gen 2 UHF RFID Vehicle parking Windshield Label





    Description:



    1.         Chip:Higgs-3

    2.         Frequency: 860-960MHZ

    3.         Protocol Standard: ISO18000-6C

    4.         Read/Write Endurance: 100,000 times

    5.         Operating Temperature :-20°C to + 55°C





    Chip features:



    › Meets EPCglobal Gen2 (V 1.2.0) as well asISO/IEC 18000-6C:2004 / Amd 1:2006 (TypeC)
    › Worldwide operation in the RFID UHF bands(860-960 MHz)
    › 800-Bits of Nonvolatile Memory
    • 96-EPC Bits, extensible to 480 Bits
    • 512 User Bits
    • 64 Bit Unique TID
    • 32 Bit Access and 32 bit Kill Passwords
    › Pre-Programmed with a unique, unalterable 64-bit serial number
    › User Memory can be Block Perma-Locked as well as read password protected in 64 Bit


    Blocks



    › Supports all Mandatory and Optional Commandsincluding Item Level Commands
    › Custom Commands for high speed programming;30 tags per second for the 96-bit EPCnumber
    › Low power operation for both read andprogram
    › Exceptional operating range, up to 10m withappropriate antenna





    FEATURE DESCRIPTION BENEFIT
    Industry Leading Sensitivity Industry leading tags performance in challenging
    RF environments.
    Saves money: Reduces the number of read points and/or minimizes tag size.
    800-Bits of NVRAM Larger memory RFID IC including 96-480 bits of
    EPC or up to 512-bits of user memory
    Provides fl exibility for local storage or for large bit-count EPC needs.
    Dynamic Authentication™ Enhanced IC security using a non-digital, unique
    and non-cloneable “fi nger-print”.
    Practically eliminates copied tags being applied
    to counterfeit or goods of higher value.





    Advantages of A.N.G adhesive rfid windshield tag/label



    1,Easy to be attached on windshield firmly as there are ahesive on the back side;

    2,High temperature resistance upto 95 celsius degree;

    3,Full color pre-printing and QR, barcode, code printing and encoding;

    4,10 Years laminating plastic/pvc card & label manufactureing experience;

    5,Long range reading distance,up to 5m for uhf parking card or windshield tag &label



    Application:



    1,Vehicle identification,

    2,Commodity anti-counterfeiting

    3,Pass anti-counterfeiting and so on.



    EPC Uhf Gen 2 Rfid Alien H3 Vehicle Parking Windshield Label For Access



    If you are interested in this tag, please welcome to send us an inquiry!
