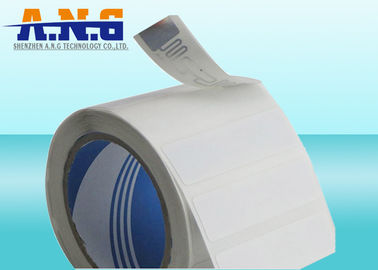

Printable 10m Read Distance UHF Rfid Tag H3 Lable For Ticket And Transportation

Printable 10m Read Distance UHF Rfid Tag H3 Lable For Ticket And Transportation

    • Printable 10m Read Distance UHF Rfid Tag H3 Lable For Ticket And Transportation
    • Printable 10m Read Distance UHF Rfid Tag H3 Lable For Ticket And Transportation
  • Printable 10m Read Distance UHF Rfid Tag H3 Lable For Ticket And Transportation

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: A.N.G
    Certification: CE,ISO, SGS
    Model Number: AT-SH130

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Depending on the chip, material, printing
    Packaging Details: 100pcs/opp bag
    Delivery Time: 2-15 Days
    Payment Terms: T/T, Paypal,Western Union, MoneyGram
    Supply Ability: 1000,000pcs per month
    Contact Now
    Detailed Product Description
    Brand Name: A.N.G Item Type: 10m Read Distance UHF Tags
    Protocol Standard: ISO 18000-6C Operation Frequency: 860-960MHZ
    Dimension: 72*19 Mm Chip: Higgs-3
    Endurance: 10 Years Material: Paper,PVC
    Unit Weight:: About 1 G Reading Range: About1m-5m (vary From Different Reader And Environment)
    Color Available Crafts: Four Color Offset Printing, Digital Number Printing

    Printable 10m Read Distance UHF Rfid Tag H3 Lable For Ticket And Transportation



         Higgs-3 operates at extremely low power levels, yet still provides sufficient

    backscatter signal to read tags at an extended range. It can also be programmed at low RF powerand, in conjunction with a custom command - LoadImage- can be programmed at high speed. Higgs-3 is implementedin a low cost CMOS process and uses proven and cost effective EEPROM technology.



        Higgs-3 offers a flexible memory architecture that provides for the optimum allocation of EPC and User memory for different use cases such as legacy part numbering systems and service history. User memory can also be read and or write locked on 64-bit boundaries, supporting a variety of public/private usage models.



        The IC also features a factory programmed 64-bit serial number that cannot be altered. In conjunction with the EPC code, this provides a unique “fingerprint” for the tagged item.





    Description:



    1.         Chip:Higgs-3

    2.         Frequency: 860-960MHZ

    3.         Protocol Standard: ISO18000-6C

    4.         Read/Write Endurance: 100,000 times

    5.         Operating Temperature :-20°C to + 55°C





    Chip features:



    › Meets EPCglobal Gen2 (V 1.2.0) as well as
    ISO/IEC 18000-6C:2004 / Amd 1:2006 (Type
    C)
    › Worldwide operation in the RFID UHF bands
    (860-960 MHz)
    › 800-Bits of Nonvolatile Memory
    • 96-EPC Bits, extensible to 480 Bits
    • 512 User Bits
    • 64 Bit Unique TID
    • 32 Bit Access and 32 bit Kill Passwords
    › Pre-Programmed with a unique, unalterable
    64-bit serial number
    › User Memory can be Block Perma-Locked
    as well as read password protected in 64 Bit
    Blocks
    › Supports all Mandatory and Optional Commands
    including Item Level Commands
    › Custom Commands for high speed programming;
    30 tags per second for the 96-bit EPC
    number
    › Low power operation for both read and
    program
    › Exceptional operating range, up to 10m with
    appropriate antenna





    FEATURE DESCRIPTION BENEFIT
    Industry Leading Sensitivity Industry leading tags performance in challenging
    RF environments.
    Saves money: Reduces the number of read points and/or minimizes tag size.
    800-Bits of NVRAM Larger memory RFID IC including 96-480 bits of
    EPC or up to 512-bits of user memory
    Provides fl exibility for local storage or for large bit-count EPC needs.
    Dynamic Authentication™ Enhanced IC security using a non-digital, unique
    and non-cloneable “fi nger-print”.
    Practically eliminates copied tags being applied
    to counterfeit or goods of higher value.



    Applications:

    1. Library books management
    2. Stock management
    3. Ticket and transportation



    SIZE:

    Printable 10m Read Distance UHF Rfid Tag H3 Lable For Ticket And Transportation

    If you are interested in this tag, please welcome to send us an inquiry!
