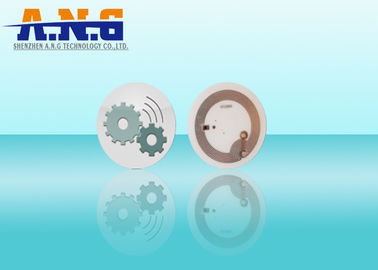

Paper High Frequency NFC Tags Rfid Label Tag Samsung Tectiles ™ Compatible

Paper High Frequency NFC Tags Rfid Label Tag Samsung Tectiles ™ Compatible

    • Paper High Frequency NFC Tags Rfid Label Tag Samsung Tectiles ™ Compatible
    • Paper High Frequency NFC Tags Rfid Label Tag Samsung Tectiles ™ Compatible
  • Paper High Frequency NFC Tags Rfid Label Tag Samsung Tectiles ™ Compatible

    Product Details:

    Place of Origin: Shenzhen, CHINA
    Brand Name: A.N.G
    Certification: CE,ISO,ROHS
    Model Number: AT-SH124

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: Depends on chip, size or material
    Packaging Details: 1000pcs / tie
    Delivery Time: 7-15 days
    Payment Terms: T/T,Paypal,Western Union, MoneyGram
    Supply Ability: 5,000,000pcs per month
    Detailed Product Description
    Brand Name: A.N.G Item Type: HF 25MM Label
    Protocol Standard: ISO14443A Operation Frequency: 13.56Mhz
    Dimension: 42mm Or Customized Antenna Size: 35mm Or Customized
    Endurance: 10 Years Material: PET、PET Substrate; Label: Paper Surface; Adhesive: Acrylic; Liner: White Glassine
    Antenna Material: Aluminum Etching Antenna Reading Range: About 1~5cm (vary From Different Reader And Environment)
    Printing Option: Full Color Offset Printing , Silk-screen Printing , Silver/Gold Silk-screen Printing Background

    Paper  High Frequency NFC Tags Rfid Label Tag Samsung Tectiles ™ Compatible



         This tag is perfect for settings, just as the Home-Car-Work Tag. Be it to put your phone on mute, turn WiFi or Bluetooth on or off or any other settings change you want to program. One tap with your phone and you are done. Use cases are infinite with this tag.





    Description:



    Tag size: 42mm(±0.5mm)
    Chip IC: Ntag 213
    Read Range  0-6CM(Fixed Reader)
    Substrate Material PVC
    Antenna Material Aluminum Etching
    Open Frequency  13.0MHZ ~14.5MHZ
    Protocol ISO/IEC14443-A
    Programming Cycle         100,000 cycles
    Attribute Disposable,Prevent Heat Transfer
    Operating Temperature -25ºC~75ºC
    Storage Temperature 0ºC~25ºC
    Volume Number   2000~3000PCS(According to Actual Demand)
    Packing Material         Anti-static PE + Bubble Pad + Anti-static Bag





    Product feature:



    1,Material: Al etched Antenna; PET substrate; Label: Paper Surface; Adhesive: Acrylic; Liner: White Glassine

    2,Samsung TecTiles™ compatible. Works with all NFC phones such as Samsung, Nokia, HTC, LG, Blackberry, Sony

    3,106 kbit/s communication speed; fast write speed; data communication protected by 16 bit CRC

    4,ISO/IEC 18902, 21481, & 14443A Type A modulation scheme







    Applications:



    1.Widely used in food brand protection
    2.Simple vehicle identification
    3.Warehouse management
    4. Asset management
    5. Facility management

    Paper High Frequency NFC Tags Rfid Label Tag Samsung Tectiles ™ Compatible



    Services :



         We have own factory and over 20 pieces patents , our engineers team can help customers design antenna and evaluate new products based on customers' needs. We have our own complete production lines, from copper or aluminum etching, flip chip bonding , lamination,Encoding programs and full quality controls, color printing .

         Customized solutions regarding shape, printing, durability, adhesion, chip technology or technical functionality; Special requirements such as tamper evidence, authenticity protection, personalization, encoding, access password. A combination with printed solution ( bar code, clear texts, TID etc ) can be created as well.





    Packaging:



    5000pcs or 10000pcs per Roll /carton



    If you are interested in this tag, please welcome to send us an inquiry!
