CM900 860~960MHz Bluetooth UHF Handheld RFID Scanner ISO18000-6C

CM900 860~960MHz Bluetooth UHF Handheld RFID Scanner ISO18000-6C

    • CM900 860~960MHz Bluetooth UHF Handheld RFID Scanner ISO18000-6C
    • CM900 860~960MHz Bluetooth UHF Handheld RFID Scanner ISO18000-6C
    • CM900 860~960MHz Bluetooth UHF Handheld RFID Scanner ISO18000-6C
    • CM900 860~960MHz Bluetooth UHF Handheld RFID Scanner ISO18000-6C
    • CM900 860~960MHz Bluetooth UHF Handheld RFID Scanner ISO18000-6C
  • CM900 860~960MHz Bluetooth UHF Handheld RFID Scanner ISO18000-6C

    Product Details:

    Place of Origin: MADE IN CHINA
    Brand Name: ANG
    Certification: CE,ROHS
    Model Number: CM900

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: depend on

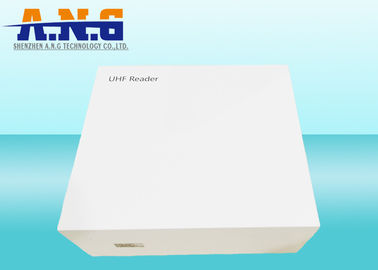

    Packaging Details: 1pc per box
    Delivery Time: 5-8 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 10000 pieces per year
    Contact Now
    Detailed Product Description
    Material: ABS Size: 172*87*125mm
    Interface: Type C Communication: Bluetooth
    Weight: 400g IP: IP52
    Frequency: 860~960MHz

    CM900 Bluetooth UHF Handheld RFID Scanner For Inventory Management



    Physical Parameter
    Size 172*87*125mm
    Weight 400g(including battery)
    Configurations UHF RFID / UHF RFID & scanning
    Notification Warning Tone, Multi-color LED
    Battery Li-polymer, 5700mAh
    removable, 3.8V
    Up time: 8 hours Standby time: 300 hours
    Interface Type-C
    Conmunication Bluetooth
    Keypad Power switch, scan keys
    Modem switch, Bluetooth switch
    Power adaptor Input: 100-240V, 50/60HZ, 300mA
    Output: 5V, 2A



    RFID Parameter
    UHF Solution IMPINJ R2000
    Standards Supported ISO18000-6C / EPC C1G2
    Fastest Read Rate 200+ tags/sec
    Reading distance 10m (depending on label and antenna)
    Frequency Range CN:920-925MHz
    US: 902-928MHz
    EP: 865-868MHz
    JP: 916-921MHz(wLBT)
    JP:916-923MHz
    Batch Mode Memory Store 100,000+ RFID tags



    Working Environment
    Operating Temperature (-4℉ to 122℉ or -20℃ to 50℃)
    Humidity 5% to 85%(non-condensation)
    Drop Specification Within operation temperature range,
    it can withstand several drops from 3.9 feet / 1.2m
    height to the concrete ground
    Roll Specification It can withstand 200 times of 1.6 feet / 0.5m rolls,
    achieving and exceeding requirements in IEC roll standard
    Vibration 4g SPK Sine(5Hz to 2KHz),
    0.04g2 / Hzrandomness(20Hz to 2KHz)
    60 minutes per axle, 3 axles
    Thermal Shock (-40℉ to 140℉ / -20℃ to 60℃ fast fade)
    Electrostatic Protection (+/- 10kv air discharge, +/- 8kv contact electricity)
    IP IP52



    Data Collection
    Barcode Scanning optional
    Bluetooth Bluetooth Class 1
      Bluetooth 4.1
    Certification CE/CCC/UN38.3/RoHS/IP52

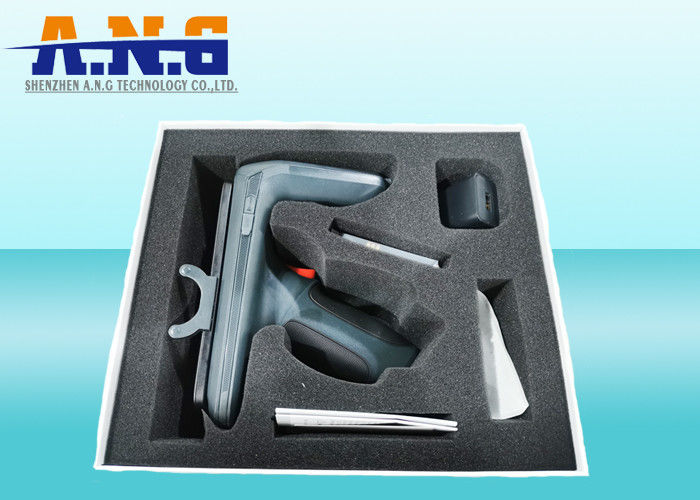

    Accessories Power adapter/USB cable/Battery
    Optional Accessories Multiple Charging Cradle/Universal Bracket



    CM900 860~960MHz Bluetooth UHF Handheld RFID Scanner ISO18000-6C

    CM900 860~960MHz Bluetooth UHF Handheld RFID Scanner ISO18000-6C

    CM900 860~960MHz Bluetooth UHF Handheld RFID Scanner ISO18000-6C

    CM900 860~960MHz Bluetooth UHF Handheld RFID Scanner ISO18000-6C

    CM900 860~960MHz Bluetooth UHF Handheld RFID Scanner ISO18000-6C
