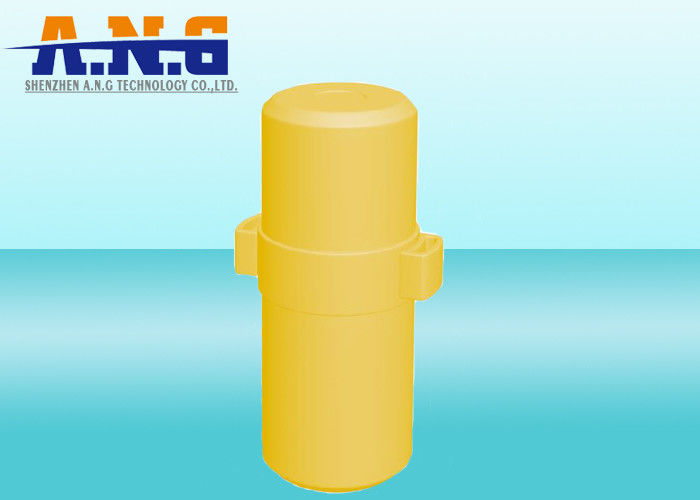

EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline

EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline

    • EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
    • EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
    • EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
    • EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
    • EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
  • EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline

    Product Details:

    Place of Origin: MADE IN CHINA
    Brand Name: ANG
    Certification: ISO,SGS
    Model Number: ANG-S801

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: depend on quantity and other details
    Packaging Details: 1pc per box
    Delivery Time: 5-8 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Chip: EM4305 Frequency: 125Khz
    Reading Distance: 2m Size: Φ52mm*136mm
    Weight: 710g

    EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline



       Cylindrical underground pipe electronic information marker, the product consists of four parts: outer casing, sensing antenna, RFID chip and ferrite core. The outer casing is made of high-quality nylon engineering plastic. The gap between the ferrite core and outer casing is filled with epoxy resin, which has good performance in corrosion resistance and aging resistance. The working frequency of the marker adopts the low frequency band, which has good penetration and obstacle ability, and the recognition distance is far (up to 2.5 meters), and maintenance-free. It is used for underground pipeline positioning and is buried near underground facilities. It can store the location of underground facilities, depth of burial, pipe diameter, pipe, date of installation, construction unit and date of use to facilitate the detection and identification of underground facilities in the future. It can also help management. Daily maintenance work. Can be widely used in urban high-density underground pipeline systems.



    Material

    Shell: Nylon engineering plastic

    Filler: Epoxy Resin

    Magnetic Core: Ferrite Core

    Color Yellow
    Size Φ52mm*136mm
    Weight 710g
    Working Temperature -25℃ ~ +65℃ (no frozen)
    Storage Temperature -40℃ ~ +80℃(no frozen)
    Chemical Resistance IP67



    Specification



    Mode Read and Write
    Memory

    EEPOM 528bit

    User Data 192bit

    ID Number Unique 15 bits UID number
    Working Frequency 125Khz
    Protocol ISO11784 / 11785
    Data Storage  >30 years
    Write Endurance >100,000 cycles
    Power Supply  Passive
    Operating Distance 0.2-2.5 meters



    Size:



    EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline



    Application:



    EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline



    EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline

    EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline

    EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
