ISO7811 Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for Reading Magnetic Card

ISO7811 Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for Reading Magnetic Card

    • ISO7811 Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for Reading Magnetic Card
    • ISO7811 Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for Reading Magnetic Card
    • ISO7811 Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for Reading Magnetic Card
    • ISO7811 Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for Reading Magnetic Card
    • ISO7811 Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for Reading Magnetic Card
  • ISO7811 Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for Reading Magnetic Card

    Product Details:

    Place of Origin: MADE IN CHINA
    Brand Name: ANG
    Certification: ISO,SGS
    Model Number: ANG-CT90

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: depend on quantity and other details
    Packaging Details: 1pc / box
    Delivery Time: 5-8 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Color: Black Size: 90*28*28mm
    Wieght: 85g Interface: USB Or RS232

    Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for RFID Card

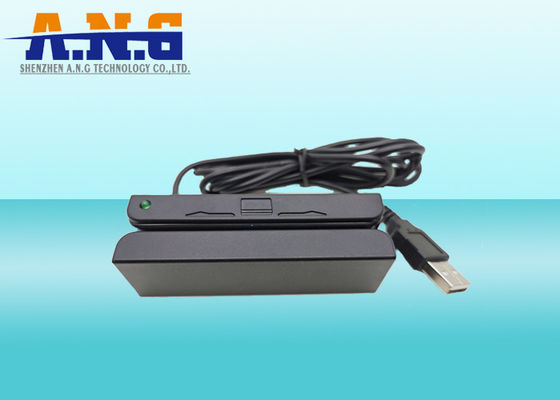

    ANG-CT90 magnetic card reader are able to read Hico and Loco full range of magnetic stripes which are compliant with ISO standards, including track 1, 2, 3. They are widely used in many business lines including but not limited to POS, banking, access control, attendance, loyalty management and medical insurance etc…

    Features:

    1. Interface: USB or RS232
    2. Compatible with JPOS&OPOS
    3. Plug and play
    4. Read track 1,2,3, can swipe and read in both directions
    5. With light and buzzer
    6. Support 3DES, DUKPT
    7. SDK can be provided if need
    8. Support windows XP, windows visa, windows 7, linux, android, ISO5,ect

    Specification:

    Dimension: 90mm(L) x 28mm(W) x 28mm(H)

    Weight: 85g(approx.)

    Power Supply: +5V DV ± 5%

    Power consumption: 40mA (max.)

    Operation Locus: Indoor use

    Card Standard: ISO7811/7812

    ISO7811 Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for Reading Magnetic Card

    Interface: USB (RS232, PS2, TTL, UART interface for options )

    Card Thickness: Plastic 0.76 ± 0.08mm

    Cable length: 150cm

    Head Function: Read only 1.5mm

    Operation Speed: 10 ~ 150cm/sec

    Life of Head: 500,000 card passes (1 pass : one swipe)

    Error Rate: Less than 0.5% (JSE Test card)

    Temperature: Storage : -30°C to +70°C Operating : -20°C to +70°C

    Humidity: Storage : 0% to 95% RH Operating : 20% to 90% RH

    ISO7811 Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for Reading Magnetic Card

    ISO7811 Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for Reading Magnetic Card

    ISO7811 Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for Reading Magnetic Card

    ISO7811 Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for Reading Magnetic Card

    ISO7811 Loco and Hico Magnetic Stripe Card Reader Track 1, 2, 3 for Reading Magnetic Card
